Description
Description

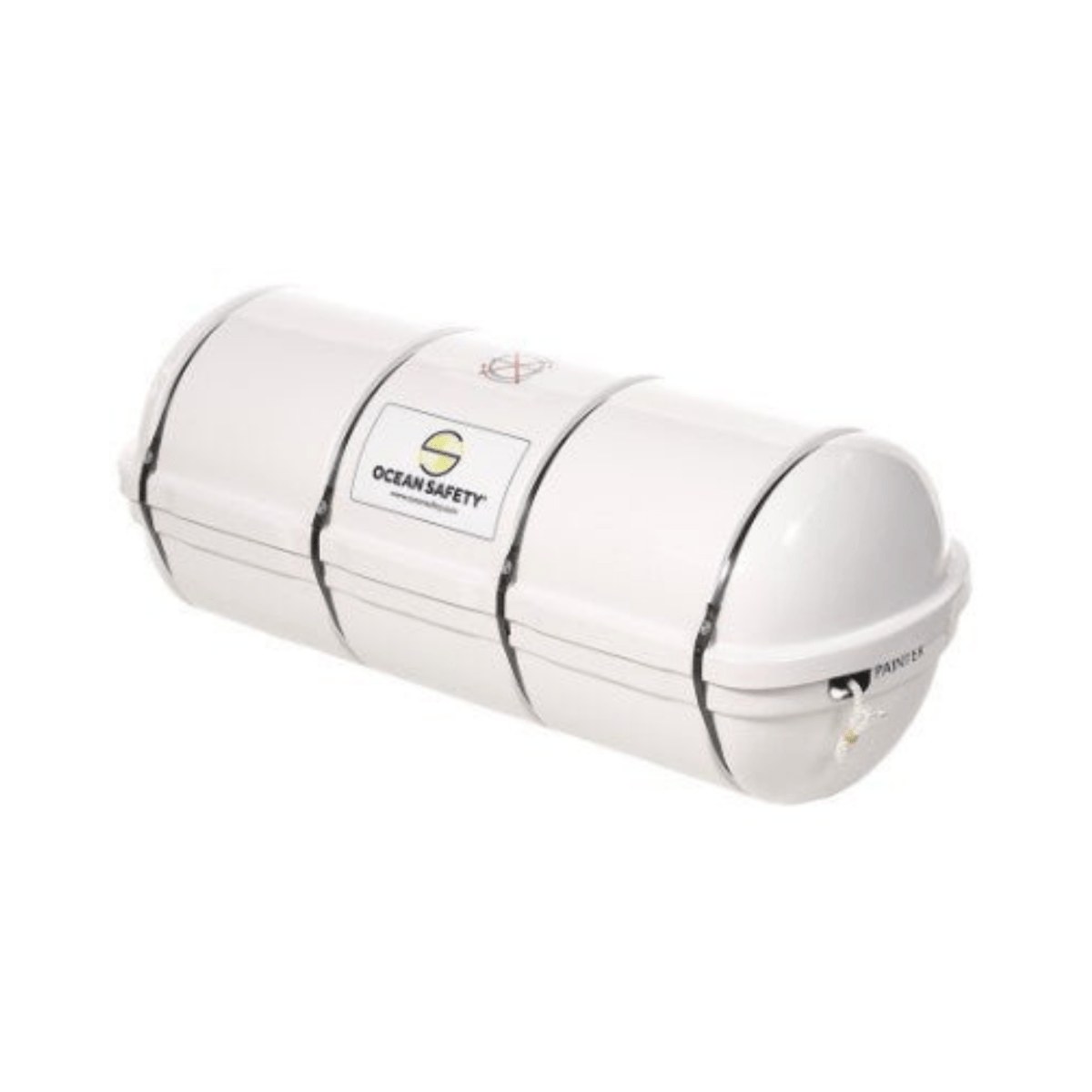

The USCG/SOLAS Life Raft Range is designed and manufactured to meet the needs of vessels, complying with the USCG and SOLAS requirements. Universally sized, the new cylindrical container has been designed to fit specifically into the existing cradles and mountings onboard many commercial vessels, without needing to upgrade their onboard infrastructure.
Also available as an MER/MED-approved life raft by DNV.

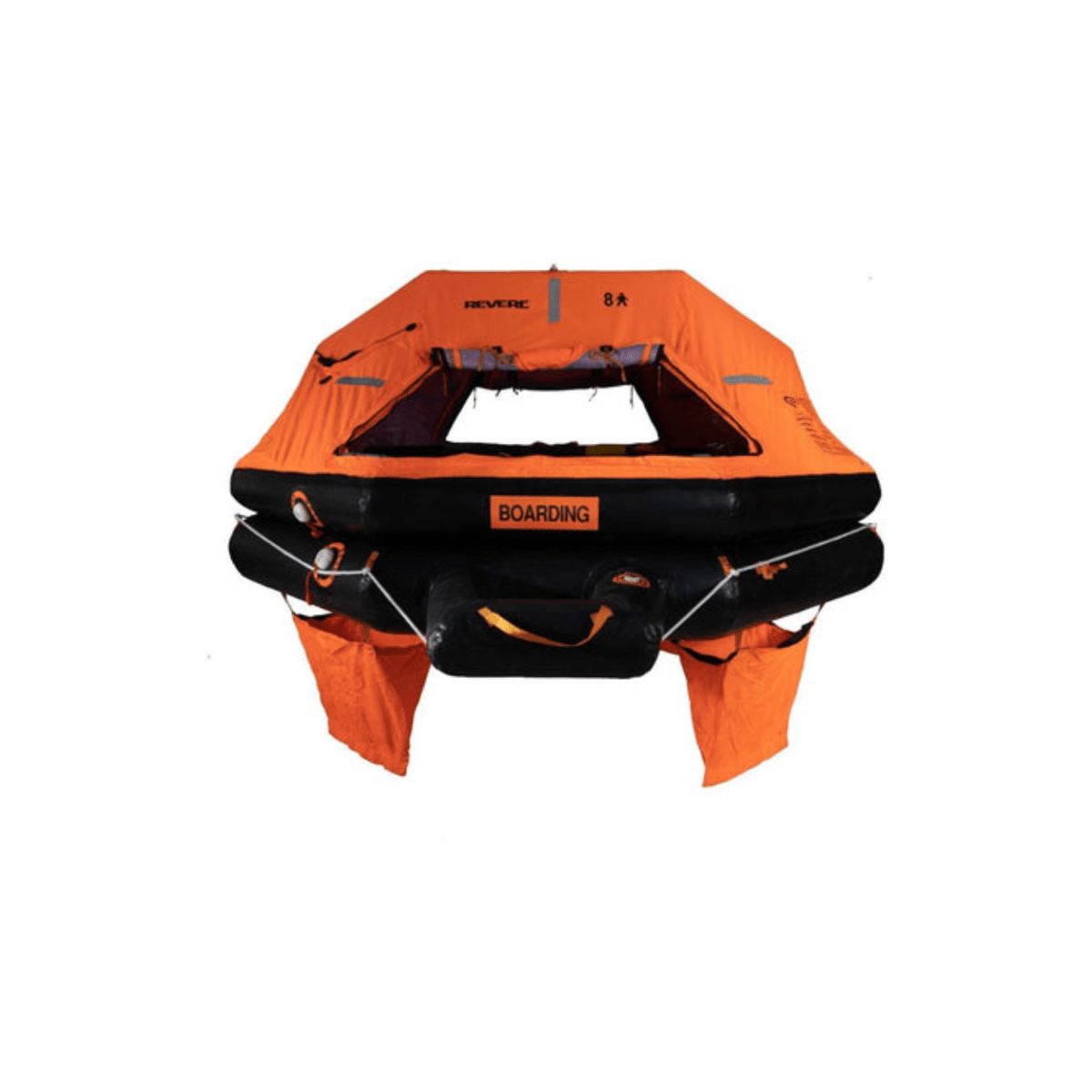

Features:
- USCG/ SOLAS/ MED/ MER approved
- 18m freeboard
- Internal and external lighting system
- Insulated floor to retain heat
- Retro-reflective tape to increase visibility
- Dual zip closure for splash protection
- Dual tube system
- Strong inflatable boarding ramp with reinforced ladder for ease of boarding
- Large water ballast pockets for maximum stability
- External lifeline
- Window ties to enable observation port
Dimensions
Dimensions
| REVERE USCG ELLIPSE LIFE RAFT SOLAS B | |||||
|---|---|---|---|---|---|
| CAPACITY | PACK TYPE | PART NO. | LENGTH (INCHES) | DIAMETER (INCHES) | WEIGHT (LBS) |
| 6 Person | SOLAS B | 45-RAF5070 | 50 | 19.5 | 161 |
| 8 Person | SOLAS B | 45-RAF5072 | 50 | 19.5 | 181 |
| 10 Person | SOLAS B | 45-RAF5074 | 55 | 21.5 | 194 |
| 12 Person | SOLAS B | 45-RAF5076 | 55 | 21.5 | 220 |
| 16 Person | SOLAS B | 45-RAF5078 | 61 | 21 | 147 |
| 20 Person | SOLAS B | 45-RAF5080 | 64.5 | 23 | 286 |
| 25 Person | SOLAS B | 45-RAF5082 | 64.5 | 23 | 297 |
| REVERE USCG ELLIPSE LIFE RAFT SOLAS A | |||||
|---|---|---|---|---|---|
| CAPACITY | PACK TYPE | PART NO. | LENGTH (INCHES) | DIAMETER (INCHES) | WEIGHT (LBS) |
| 6 Person | SOLAS A | 45-RAF5050 | 50 | 19.5 | 187 |
| 8 Person | SOLAS A | 45-RAF5052 | 50 | 19.5 | 216 |
| 10 Person | SOLAS A | 45-RAF5054 | 55 | 21.5 | 238 |
| 12 Person | SOLAS A | 45-RAF5056 | 55 | 21.5 | 275 |
| 16 Person | SOLAS A | 45-RAF5058 | 61 | 21 | 322 |
| 20 Person | SOLAS A | 45-RAF5060 | 64.5 | 23 | 379 |
| 25 Person | SOLAS A | 45-RAF5062 | 64.5 | 23 | 407 |
Datasheets & Certificates
Datasheets & Certificates
| Datasheets & Certificates | |
|---|---|
| Datasheet | Click to View |
| USCG Certificate of Approval - 6 Person | Click to View |
| USCG Certificate of Approval - 8 Person | Click to View |
| USCG Certificate of Approval - 10 Person | Click to View |
| USCG Certificate of Approval - 12 Person | Click to View |
| USCG Certificate of Approval - 16 Person | Click to View |
| USCG Certificate of Approval - 20 Person | Click to View |
| USCG Certificate of Approval - 25 Person | Click to View |
