Shakespeare  |  SKU: 10631

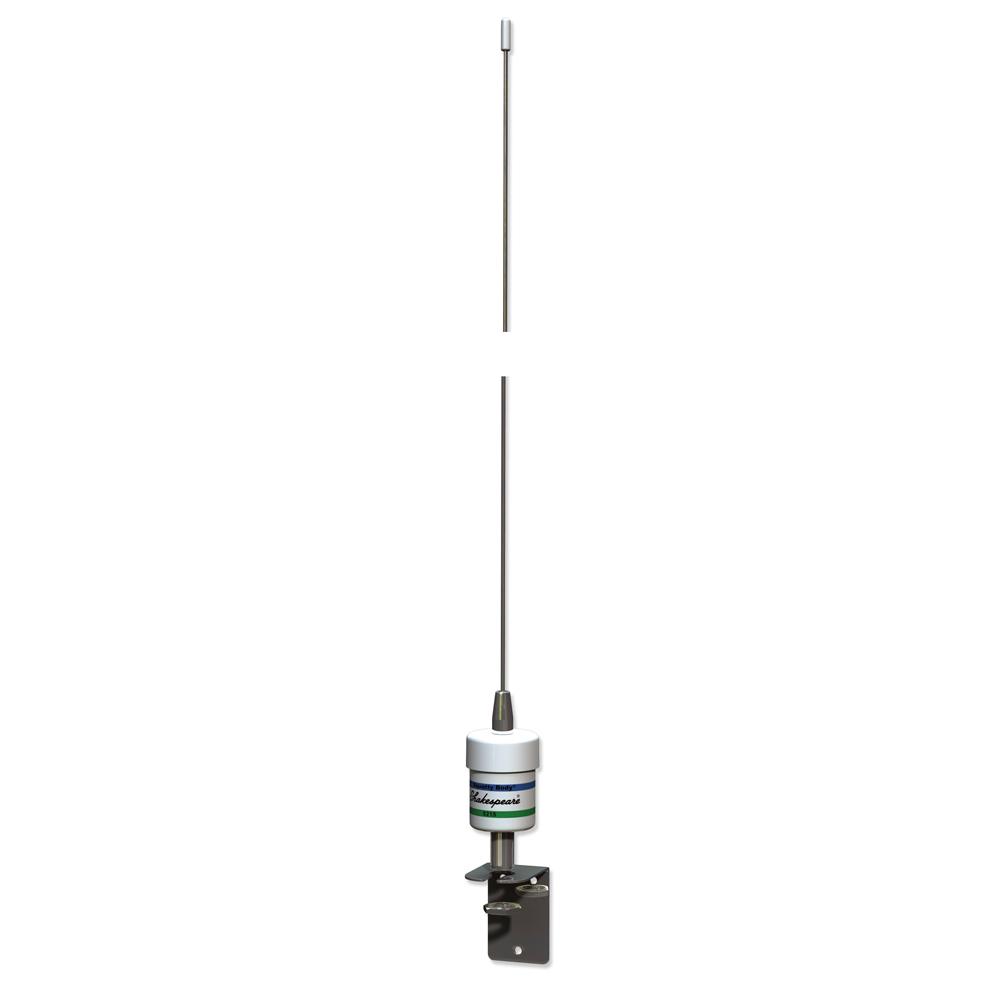

Shakespeare 5215 3' Stainless Steel Whip Antenna

$76.95 $99.99

Description

Shakespeare Style 5215 SQUATTY BODY® VHF Marine
36" LENGTH, 3dB

END-FED 1/2-WAVE STAINLESS STEEL WHIP

A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.

  • Hermetically sealed, tin-plated copper wire coil
  • Stainless steel body and whip
  • SO-239 connector - cable sold separately
  • Mount: Stainless steel "L" bracket supplied, for mast mounting
  • One section
  • Shakespeare Limited Warranty: 2 years


technical Specifications:


Frequency: VHF Marine band
Bandwidth: 7 MHz
SWR: 1.5:1 @ 156.8 MHz
Impedance: (Ohms): 50
Gain: 3 dB
Max Input (Watts): 50
DC Ground: NO
Termination: SO-239 connector
Height (feet): 3
Polarization: Vertical
Radiation pattern: Omni-directional

Specifications:

  • Antenna Band: VHF
  • Color: Stainless
  • Construction: Stainless Steel
  • Length (Inches): 36"
  • Box Dimensions: 3"H x 3"W x 40"L WT: 1.5 lbs
  • UPC: 719441100148

Quick Guide (pdf)
