HAMMAR Quick Release System Complete Remote Release

HAMMAR Lifebuoy Quick Release System (HLQRS), HA0600H

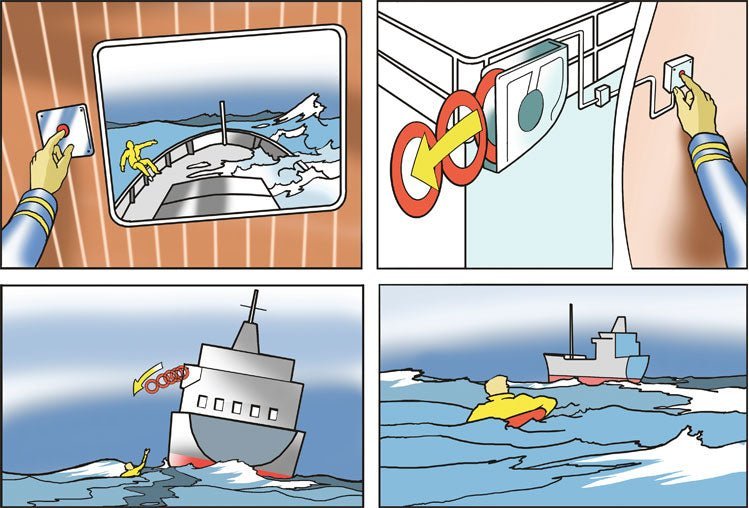

The Hammar HLQRS is a well-designed system that ensures both quick release of Bridgebuoy in a MOB situation as well as if the vessel itself is sinking.

Features:

• Safe and quick operation to save lives
• Electric activation from the bridge
• One complete package
• Easy and quick installation onboard
• Economical solution

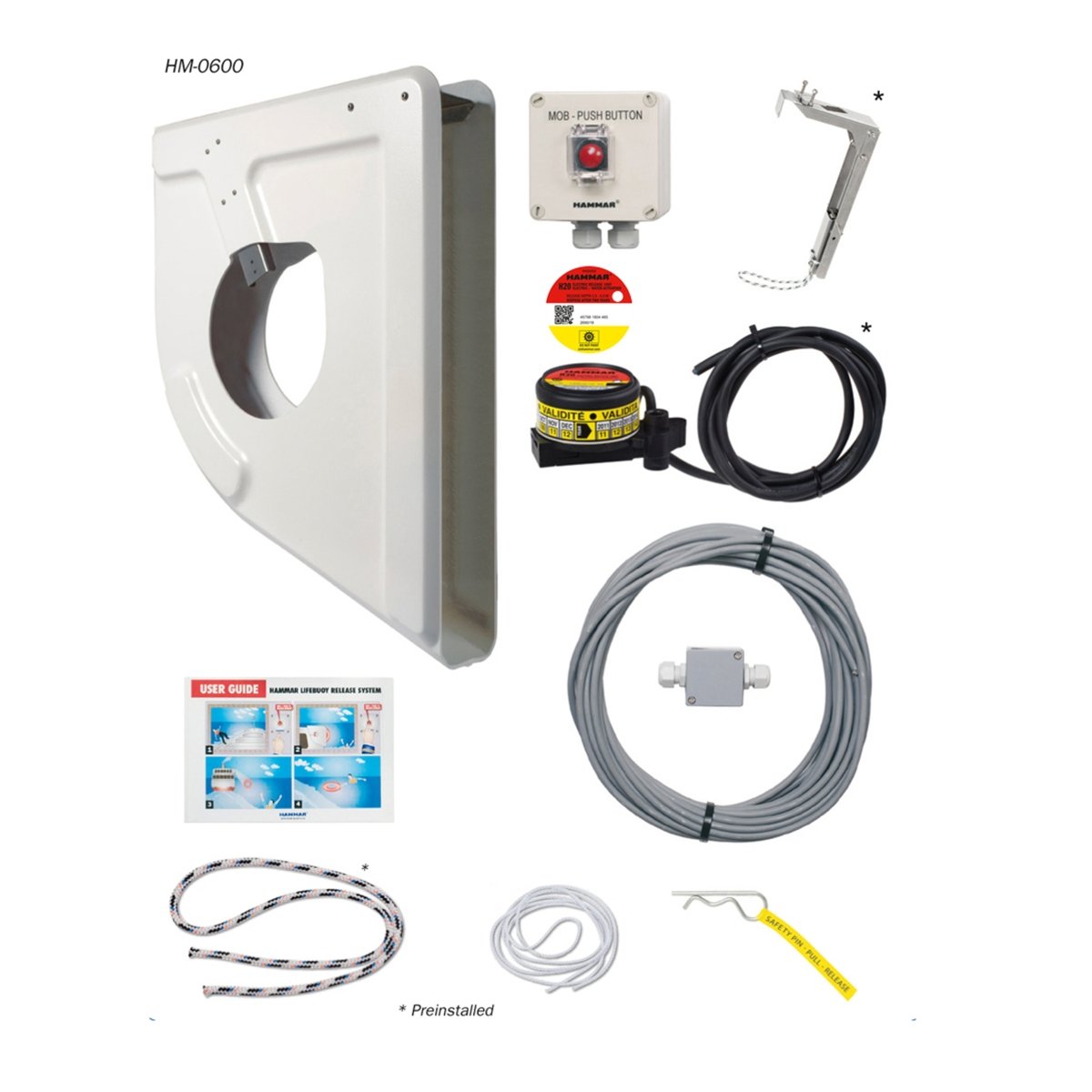

A complete system for one side consists of:

• HA0500H: GRP holder with mounting brackets that can be fitted on either port or starboard side, size 1000X1000X130 mm.
• HA0510H: ERRS package which includes one release switch, one connector box, one ERU, 15 meters of cable and a manual. The release switch is operated on DC24V emergency power.
• HA0520H: Holder package which includes metal holder, spring, manual safety pin, reinforcement washer, cable tie and manual
• DX0340D: Datrex Bridgebuoy 4.0 kg.

Spare parts:

• HA0406H ERU electric / water activation, to be replaced every two years.
• HA0630H Hydrostatic Replacement kit, to be replaced every two years. Pictured in images.
