AVI Survival Life Raft, 4-8 Person FAA TSO-C70a – Type II
AVI Survival Life Raft, 4-8 Person FAA TSO-C70a – Type II - 4 Person / FAR 91 Survival Kit / No is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
All AVI Life Rafts are built to order. There is about a 1-2 week lead time on this product.
AVI Survival Products 4 and 8 Person Life Raft conforms to the latest FAA TSO C70a requirement. The life raft has a single tube inflatable design, classified as a Type II Non-Transport category life raft recommended for Corporate and General Aviation.
The 4 and 8 Person life raft series is constructed with the latest Urethane coated Nylon Fabric, with a single tube internal bulkhead design that are attached using hot air welding. Welding the fabric together tightly seals the seams together creating two separate chambers. Each raft includes a stabilizing water ballast system, a hand pump, bailing bucket, a sea anchor, secured life-lines on the exterior perimeter of the raft for use of survivors in the water, and an inflation/retaining line that is attached to a high strength patch on the raft to prevent drifting and a water activated locator light. Aluminum cylinders and valves are added to reduce corrosion while packed and in use. The Soft-Pack Valise is made of heavy-duty polyester fabric with secured Velcro closures for a tightly packed raft.
These rafts are engineered to reduce overall weight and deliver a compact design for easy transport and stowage for any aircraft compartment. AVI life rafts come with a 5-year warranty on parts and labor, built to last a lifetime with proper care.
TSO Life Rafts are recommended for those who charter flight and/or are categorized as Part 121 or 135 Operators. This raft includes the FAR 91 TSO Survival Equipment Kit that meets FAA regulations. For more information on FAA Survival Equipment Kits visit, Electronic Code of Federal Regulations.
- Lightest weight and most compact - easy to carry, stow away, and maneuver able any emergency.
- Single tube with internal bulkhead design creating two separate chambers.

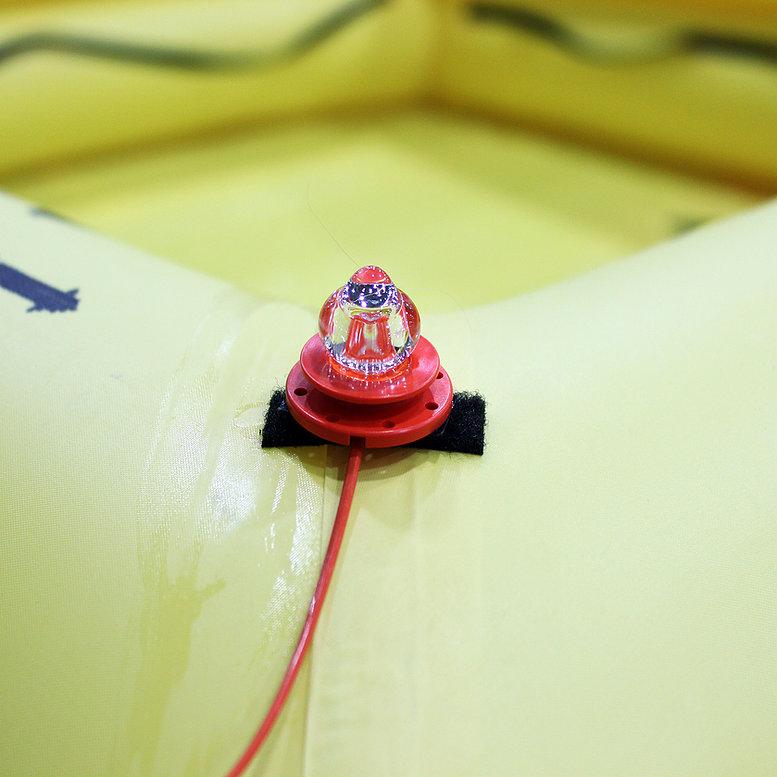

- Includes a stabilizing Water Ballast System and a Water Activated Locator Light.

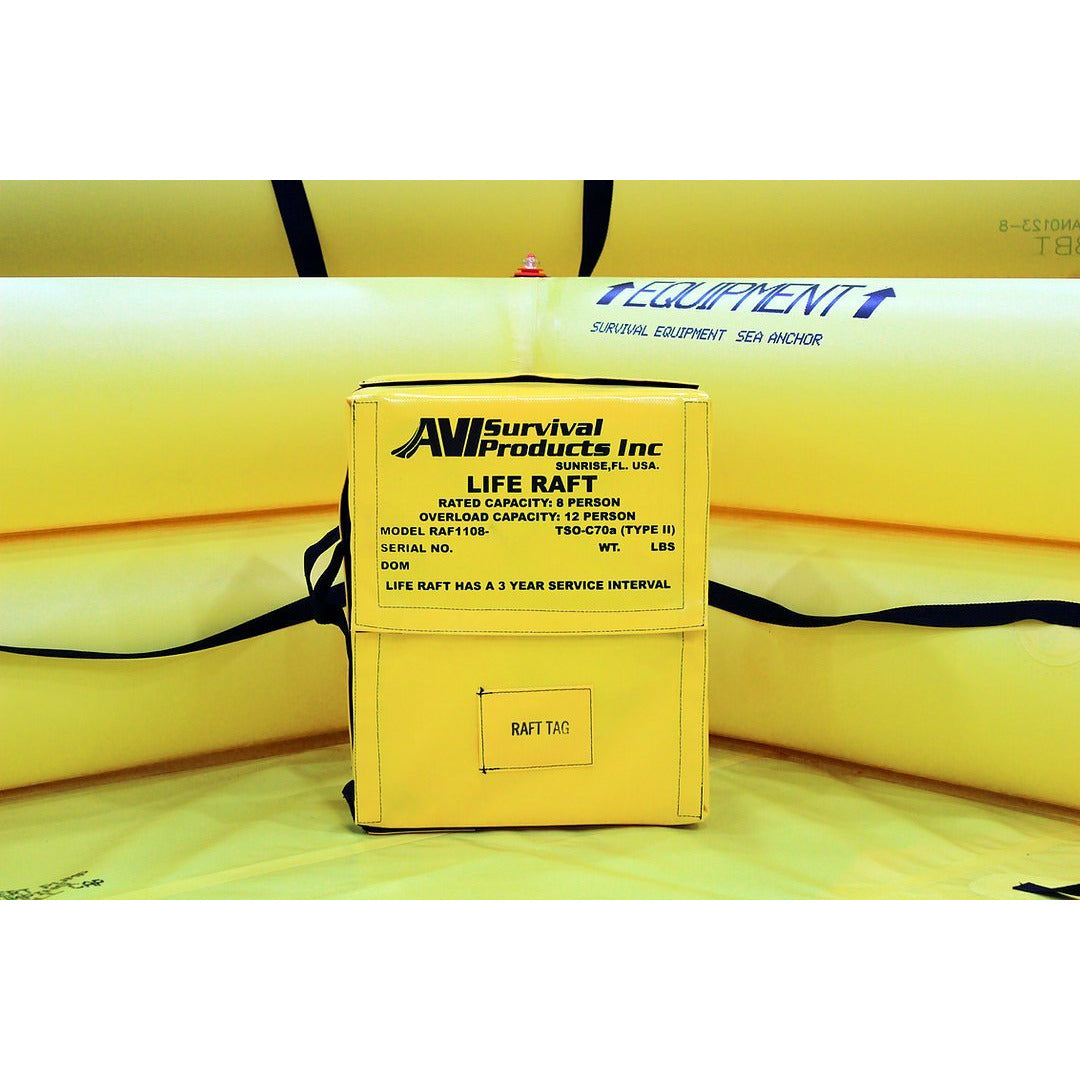

- Soft-Pack Valise made of heavy duty Polyester fabric with secure Velcro closures.
- Constructed of Urethane coated Nylon Fabric, meeting TSO-C70B requirements.
- Contains Aluminum Cylinders and valves eliminating corrosion and greatly reducing the weight.
- 5-year warranty on parts and labor, built to last a lifetime with proper care.
- Optional survival kits are available to meet individual requirements and highly visible orange canopy to aid in search and rescue operations.
- 4 - (6 overload capacity) Person TSO
- 8 - (12 overload capacity) Person TSO
- Buoyancy Tube
- CO2 Inflation System
- Canopy Mast
- Boarding Handles
- Retaining Line
- Hand Pump
- Bailing Bucket
- Sea Anchor
Dimensions and weight:
|Product code||Survival Kit
||dimensions (in)||weight (lbs)||Cap./ Overload Cap.|
|RAF1104-301||FAR 91 KIT||8" x 14" x 17"||23||4 per./ 6 per.|
|RAF1104-303||FAR 121 KIT||8" x 14" x 17"||24||4 per./ 6 per.|
|RAF1104-305||FAR 135 KIT||8" x 14" x 17"||29||4 per./ 6 per.|
|RAF1108-301||FAR 91 KIT||10" x 15" x 18"||32||8 per./ 12 per.|
|RAF1108-303||FAR 121 KIT||10" x 15" x 18"||32||8 per./ 12 per.|
|RAF1108-305||FAR 135 KIT||10" x 15" x 18"||39||8 per./ 12 per.|
*Dimensions are measured by H x W x L.
**Required Raft Compartment Size = Add 1-2” to all around life raft dimensions. Raft required weight +/- 2lbs.
Aviation & Marine Survival Kits
The optional survival equipment kit is stowed its own valise (separate from the raft valise). Separate units provide the ultimate in flexibility for raft and survival equipment combinations - ability to purchase basic rafts and survival equipment separately to meet unique requirements. Survival equipment kit and raft valise are attached to each other using velcro and a tie-line. Survival kits are designed and prepared for Non-TSO and FAA/TSO-Approved aviation or marerine use. FAR 91, FAR 121, and FAR 135 survival equipment kits are available. All kits a also sold separately
Equipment Kit Comparison
|Survival Kit Content ||Standard / FAR 91||Standard Plus / FAR 121||Deluxe / FAR 135|
|Canopy with inflatable mast||X||X||X|
|3 signal flares||X||X||X|
|First aid kit||X||X||X|
|Raft repair kit||X||X||X|
|Sea dye markers||X||X||X|
|2-Cell flashlight with batteries||X||X||X|
|75" Tie down cord||X|
|PART NUMBER||PACK SIZE (HXWXL)||WEIGHT||PACK NOTES|
|RAF1104-301||8” x 14” x 17”||23 lbs||Standard|
|RAF1104-303||8” x 14” x 17”||24 lbs||Standard|
|RAF1104-305 T1*||8” x 14” x 17”||29 lbs||Standard|
|RAF1104-307||5" x 14" x 21"||23 lbs||Endpack|
|RAF1104-309 T1*||5" x 14" x 21"||29 lbs||Endpack|
|RAF1108-301||10" x 15" x 18"||32 lbs||Standard|
|RAF1108-303||10" x 15" x 18"||32 lbs||Standard|
|RAF1108-305 T1*||10" x 15" x 18"||39 lbs||Standard|
Dimensions are measured by H x W x L.
Required Raft Compartment Size = Add 1-2” to all around life raft dimensions. Raft required weight +/- 2lbs.
|AVI Survival Aviation Certificates & Datasheets|
|AVI Survival Life Raft, 4 Person FAA TSO-C70a – Type II Spec Sheet||Click to View|
|AVI Survival Life Raft, 8 Person FAA TSO-C70a – Type II Spec Sheet||Click to View|
|AVI Survival Products Brochure||Click to View|
|TSO Life Raft Operator's Manual||Click to View|
|AVI Survival MSDS Form||Click to View|
|FAA Authorization Certificate - RAF1104 and RAF1108||Click to View|
|Certificate of Accreditation||Click to View|
