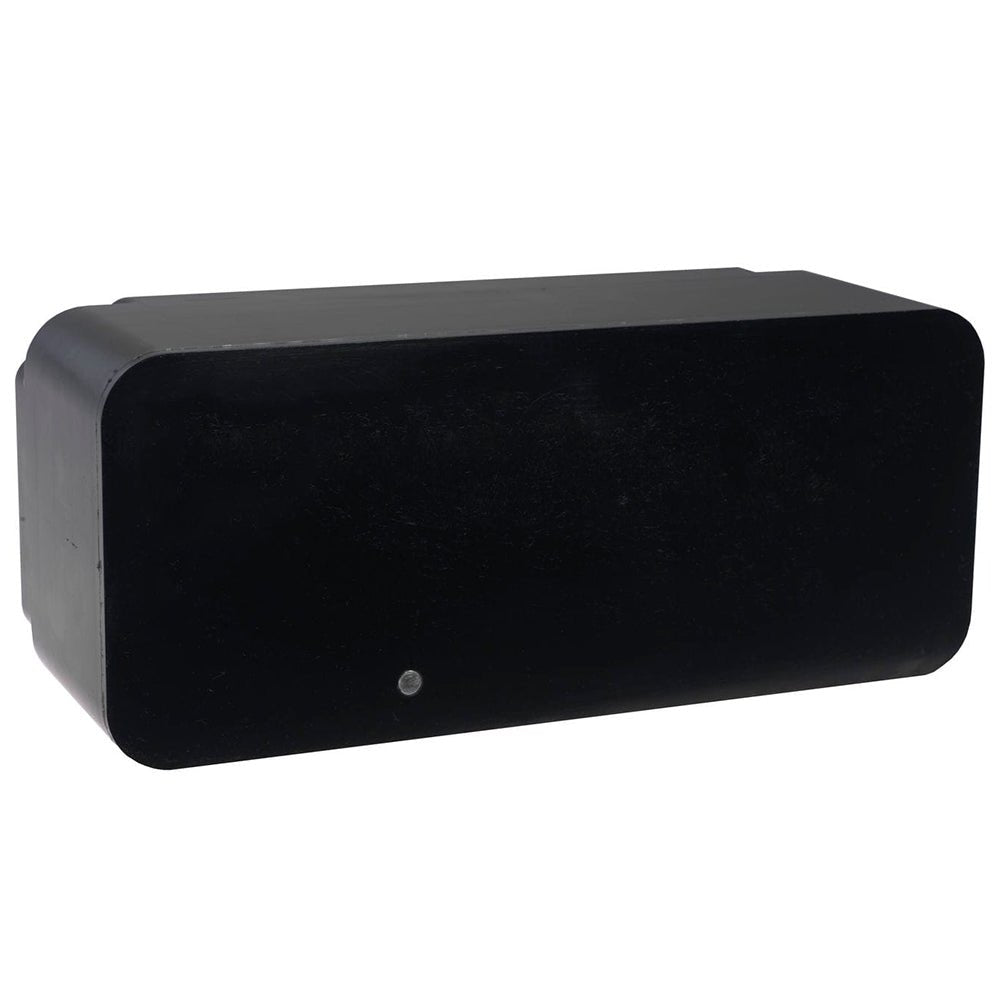

Garmin Airmar CM599LHW 1-3kW Pocket Mounted Transducer, 28-60 150-250kHz
Garmin Airmar CM599LHW 1-3kW Pocket Mounted Transducer, 28-60 150-250kHz is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Airmar CM599LHW 1-3kW Pocket Mounted Transducer, 28-60 & 150-250kHz
This pocket mounted transducer uses very narrow beams and low frequencies and wide beams for high frequencies to send depth and temperature to your Garmin Marine Network.
A pocket version of the R599LH, this 1 to 3 kW bare wire plastic transducer has a maximum depth of 10,000 feet; an operating frequency of 28 to 60 kHz and 150 to 250 kHz; and a beamwidth of 9x23 degrees or a constant 25 degrees. The pocket mount is installation dependent.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Temperature: Yes
- Speed Included: No
- Pins: Bare Wires
- Mounting Style: Pocket
- Cable Length (Feet): 70'
- Chirp: Low/High Wide
- Imagining: Standard
- Box Dimensions: 12"H x 13"W x 17"L WT: 33.5 lbs
- UPC: 753759123628
Owner's Manual (pdf)
