Icom  |  SKU: 92103

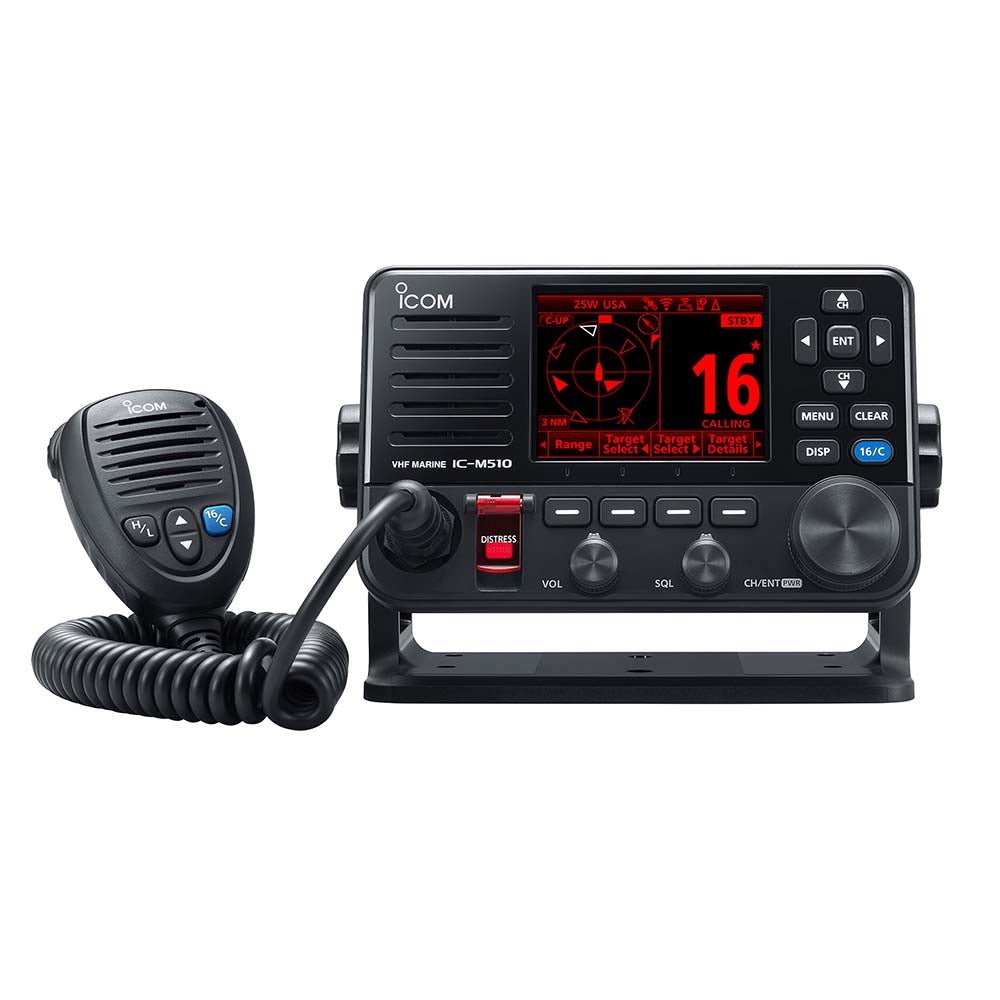

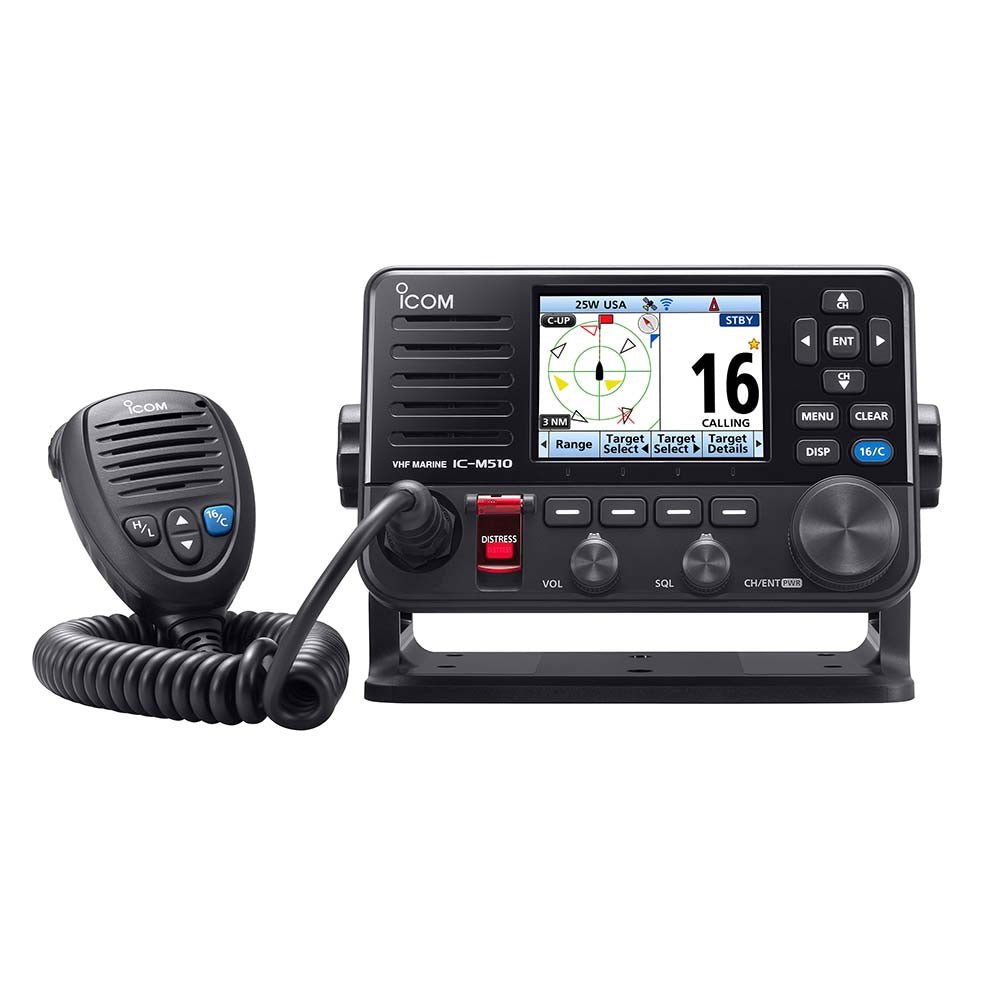

Icom IC-M510 PLUS VHF Marine Radio w/AIS

$787.95 $1,206.00

Description

IC-M510 PLUS VHF Marine Radio with AIS

Stay in touch from anywhere on the boat with the IC-M510 Plus fixed mount Marine VHF Radio with AIS.

Icom’s Class D DSC fixed-mount VHF Marine Radio with AIS receive capability.  The IC-M510 Plus is nearly half the depth of the M506, allowing installation in more confined spaces.  The large color display has a simple user interface, allowing casual and serious boaters alike plenty of options to communicate.

Use the RS-M500 app (for iOS™/Android™) to remotely control the IC-M510 through WLAN.  Up to three smart devices can be used as a wireless microphone or remote controller in substitute for the COMMANDMIC™.

With its integrated AIS receiver, the IC-M510 Plus can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.

The intercom function between your smart device and the radio is also available.

Features:

  • Large color display - 3.5" TFT LCD
  • S-M500 app ( iOS® or Android™) allows you to connect three (3) smart devices to function as a wireless command speaker/microphone
  • Hand microphone with AquaQuake™
  • Front and back microphone connection ports
  • Optional voice scrambler
  • External speaker connection
  • Supports 4-digit channels
  • Option to connect external GPS

Technical Specifications:

  • Output Power - 25W
  • Frequency Range - Transmit - 156.025 to 157.425 MHz
  • Frequency Range - Receive -  156.050 to 163.275 MHz
  • Waterproof Rating - IP68
  • GPS - Built-in
  • WLAN - Built-in
  • Connectivity - NMEA 0183 (NMEA 2000™ with the addition of the CT-M500)

Features:

  • Hand microphone with AquaQuake™
  • Front and back microphone connection ports
  • Optional voice scrambler
  • External speaker connection
  • Supports 4-digit channels
  • Option to connect external GPS

In the Box:

  • IC-M510 Plus VHF radio with AIS
  • Speaker microphone (HM-250RB)
  • DC Power cable
  • Microphone hanger
  • Mounting bracket kit
  • Instruction manual

*Sold as you Individual

Specifications:

  • AIS: Yes
  • Built-In GPS: Yes
  • Color: Black
  • Hailer: Optional
  • Intercom Capability: Yes
  • NMEA 2000: Optional
  • Remote Mic Capable: Yes
  • Scrambler Capable: Yes
  • Box Dimensions: 7"H x 9"W x 11"L WT: 4.2 lbs
  • UPC: 731797039866

Owner's Manual (pdf)
Brochure (pdf)
