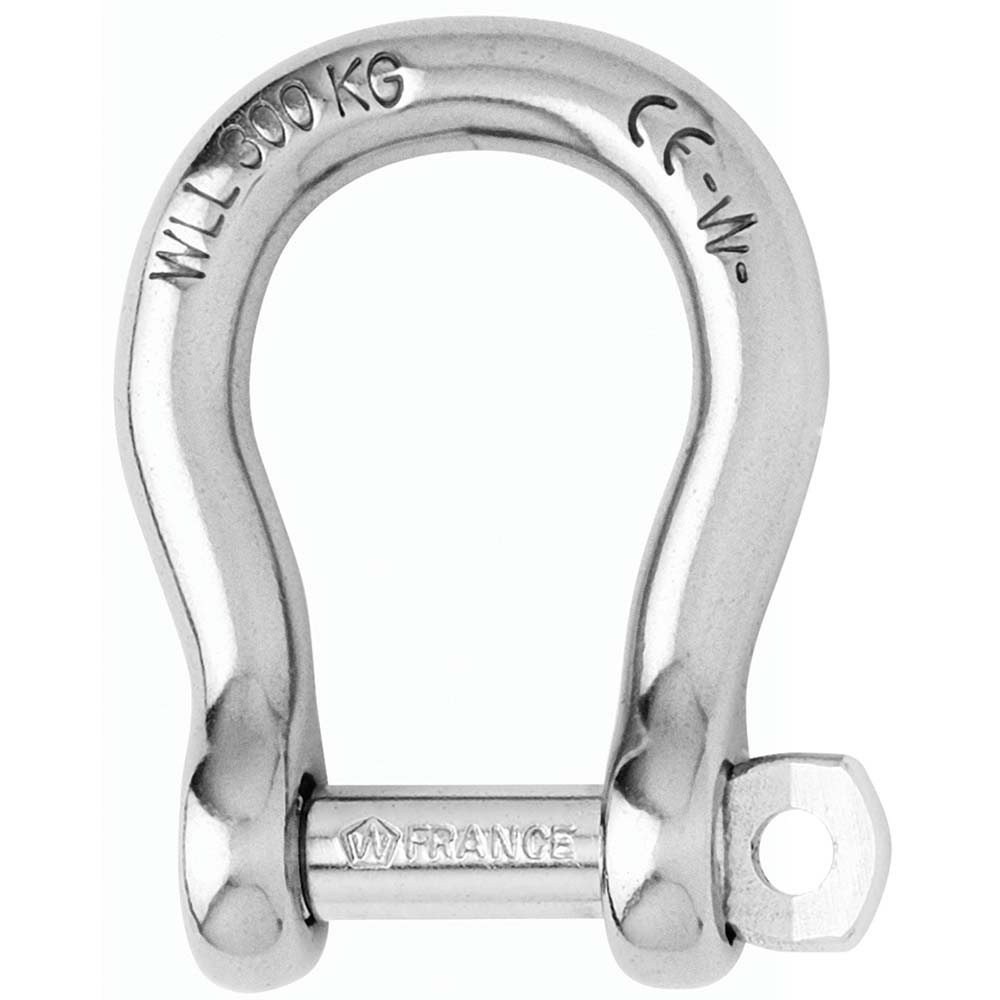

Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16"
Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16" is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Self-Locking Bow Shackle - Diameter 8mm - 5/16"
- Self-locking bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
- To be used when ample room is required
- Possibility to attach several lines or cables
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1190
- Breaking load (lb) 5950
- Weight (lb) 0.15

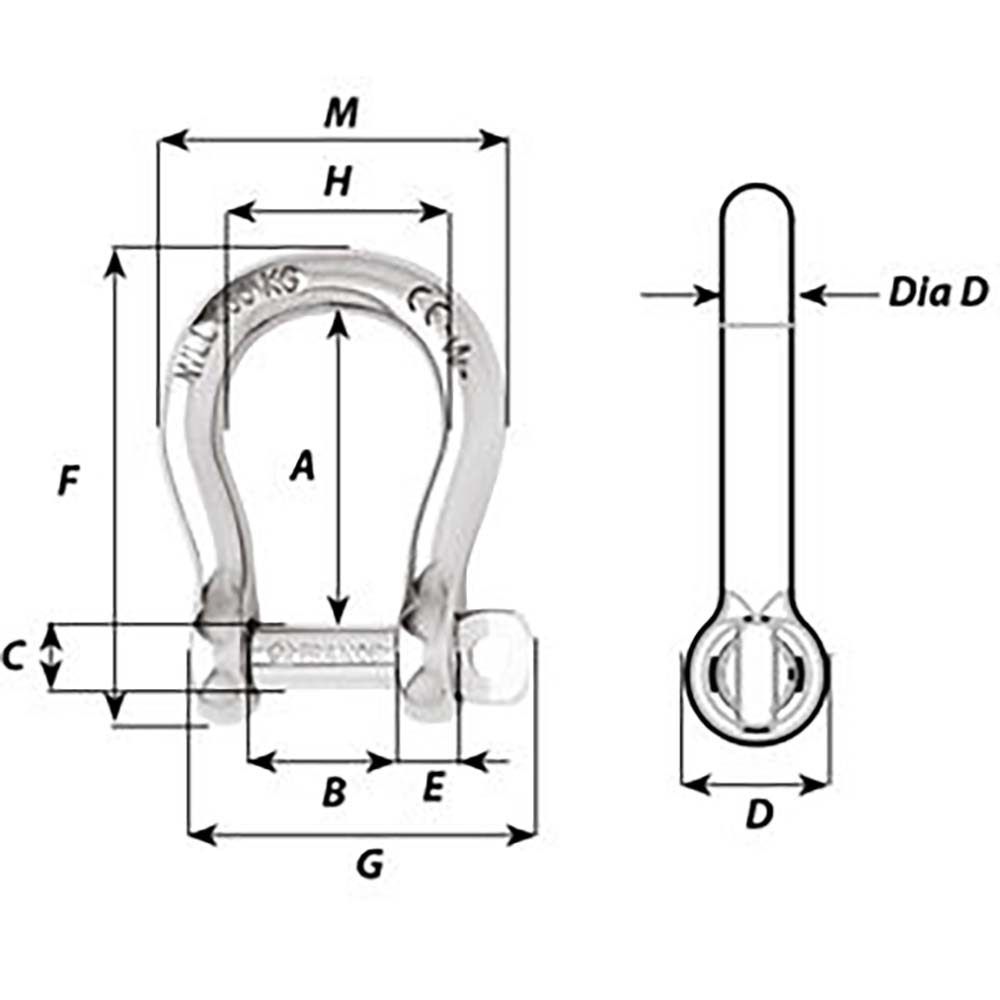

Dimensions (see 2nd image):
- A (inch) 1-29/64"
- B (inch) 5/8"
- C (inch) 5/16"
- D (inch) 5/8"
- D diameter (inch) 5/16"
- E (inch) 9/32"
- M (inch) 1-17/32"
