Schaefer Marine

Double Stanchion Tube - 26"Double lifeline stanchion is 26" tall and accepts up to 5/16" (8mm) diameter coated wire. Works with Schaefer base 36-01. L 26" (660 mm), W 1" (25 mm), T 1/16" (1.5 mm), Weight 1 lb. 6 oz. (624 g)

Double Stanchion Tube - 24"Double lifeline stanchion is 24" tall and accepts up to 5/16" (8mm) diameter coated wire. Works with Schaefer base 36-01. L 24" (610 mm), W 1" (25 mm), T 1/16" (1.5 mm), Weight 1 lb. 3 oz. (539 g)

Furler Pull Back Bracket/Haylard Restrainer - LargeHalyard Restrainer mounts directly on the front of the mast below the Genoa Halyard sheave. Restrainer "deflects" halyard eliminating Halyard Wrap.Halyard Restrainer appropriate for boats from 27' - 53'. Eliminates possibility of halyard wrap with furling systems when...

Stamped "D" Shackle - 1/4"Pin Dia. 1/4" (6 mm), Depth 13/16" (21 mm), Width 1/2" (13 mm), SWL 1750 lbs. (795 kg), Weight 0.6 oz. (17 g)

Stamped "D" Shackle - 1/4"Pin Dia. 1/4" (6 mm), Depth 1" (25 mm), Width 11/16" (17 mm), SWL 1750 lbs. (795 kg), Weight 1.1 oz. (31 g)

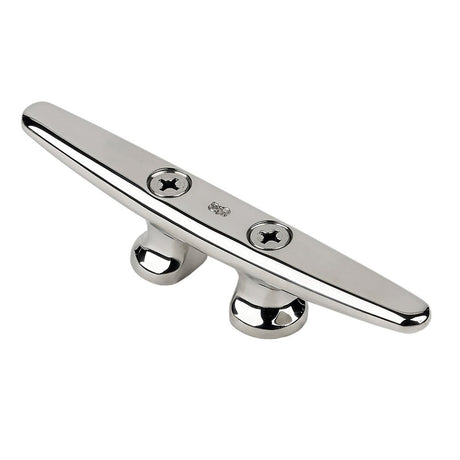

Stainless Steel Cleat - 8"8" SS Open Base Cleat. Includes urethane washers for isolation when attaching to spars. Maximum line size 5/8" (16mm), Length 8" (203mm), Height 2.0" (51mm), Fastener size 5/16" FH, Fastener center/center 2.0" (51mm), Weight 1.3 lb (.59kg)

Stainless Steel Cleat - 6"6" SS Open Base Cleat. Includes urethane washers for isolation when attaching to spars. Maximum line size 1/2" (12mm), Length 6" (152mm), Height 1.2" (30mm), Fastener size 1/4" FH, Fastener center/center 1.5" (38mm), Weight 9.0oz (.26kg)

Stainless Steel Cleat - 4.75"4.75" SS Open Base Cleat. Includes urethane washers for isolation when attaching to spars. Maximum line size 3/8" (10mm), Length 4.75" (120mm), Height .9" (23mm), Fastener size #10 FH, Fastener center/center 1.25" (32mm), Weight 4.1oz (.12kg)

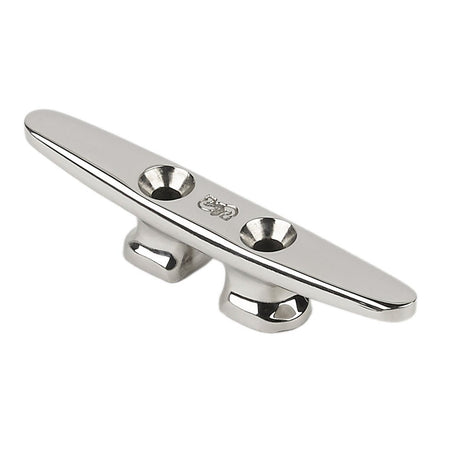

Stainless Steel Cleat - 3"3" SS Open Base Cleat. Includes urethane washers for isolation when attaching to spars. Maximum line size 1/4" (6mm), Length 3" (76mm), Height .6" (15mm), Fastener size #8 FH, Fastener center/center .78" (20mm), Weight 1.3oz (.04kg)

Aluminum Deck Cleat - 8"Length 8" (203 mm), Line Score 5/8" (16 mm), Fasteners (2), 5/16" FH (8 mm), C/C A 2" (51 mm), Weght 8.5 oz. (240 g)

Aluminum Deck Cleat - 6"Length 6" (152 mm), Line Score 5/8" (16 mm), Fasteners (2), 1/4" FH (6 mm), C/C A 1-1/2" (38 mm), Weight 3.5 oz. (99 g)

Aluminum Deck Cleat - 5"Length 5" (127 mm), Line Score 1/2" (13 mm), Fasteners (2), #12 FH (6 mm), C/C A 1-1/4" (32 mm), Weght 2 oz. (57 g)

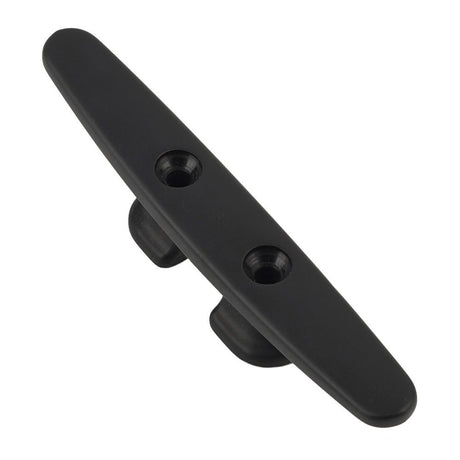

Aluminum Deck Cleat - 4"Length 4" (102 mm), Line Score 3/8" (10 mm), Fasteners (2), #10 FH (5 mm), C/C A 1" (25 mm), Weight 1.5 oz. (43 g)

Cam Fairlead - RedMounts directly to our 70-17 Cam Cleat. Will require (2) #10 RH fasteners.
