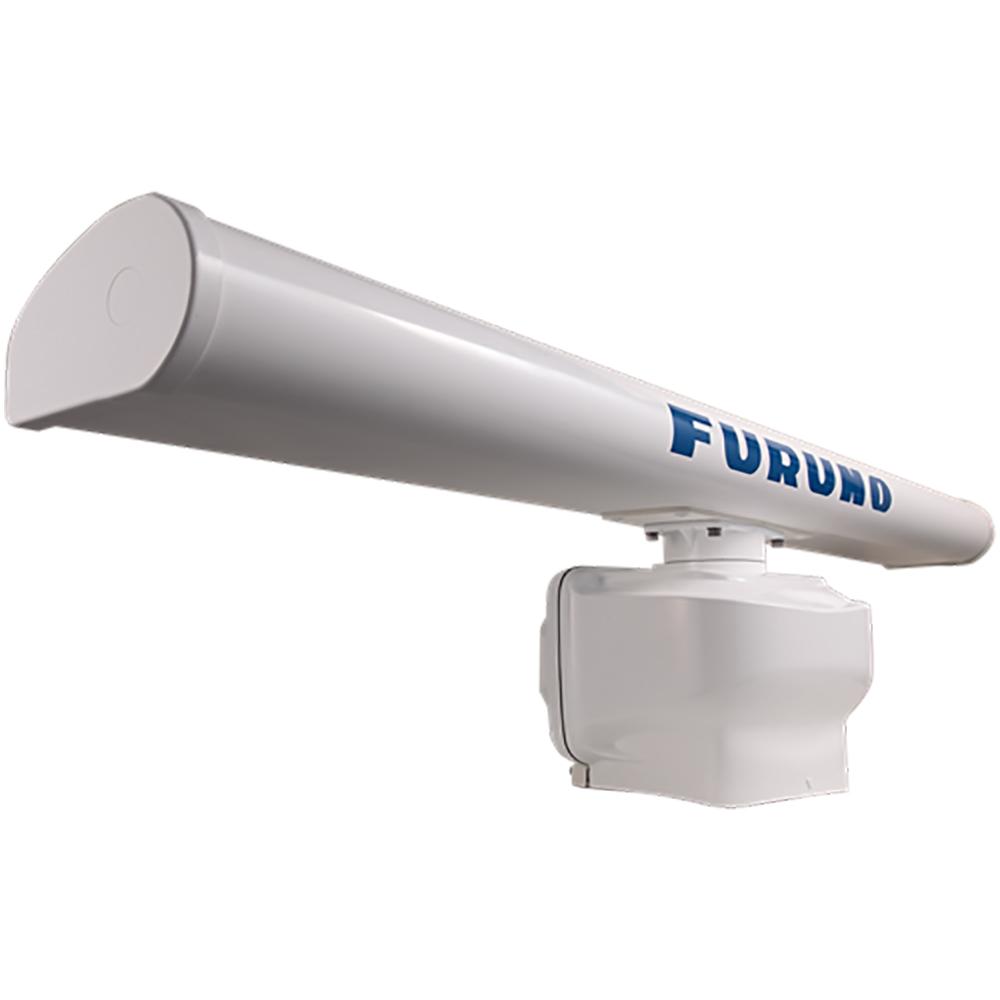

Furuno DRS12AX 12kW UHD Digital Radar w/Pedestal 15M Cable 6 Open Array Antenna

DRS12AX 12kW UHD Digital Radar with Pedestal 15M Cable & 6' Open Array Antenna

Pushing the boundaries of what is possible with conventional Radar technology, DRS12AX "X-Class" marks yet another leap forward for Furuno. Improved in almost all aspects, DRS12AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.

The redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS12AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Features:

• 12kW Power Output
• Enhanced target detection, both short and long range
• Minimum detection range of just 20 m
• Fast Target Tracking™
• Bird Mode
• Pedestal unit 20% lighter than previous unit, updated with new, low noise motor
• No PSU required, decreasing total costs
• Easy installation without the need to open pedestal unit
• Smart-connector cable
• 6ft Antenna
• 15M Cable
• 96NM Range
• Compatible with NavNet TZtouch, NavNet TZtouch2 and TZtouch3 (not compatible with NavNet 3D or earlier NavNet models)
• The DRS12AX is a 24V system; a converter will be required for use with 12V power systems
