HAMMAR H20 For Small Rafts HA200H

H20R  for small inflatable life rafts

The H20 Small Raft model (green label) is used for USCG approved, non SOLAS 4 persons liferafts and all recreational rafts up to 12 persons.

Find the manual online:

To find the H20 manual online, visit https://www.cmhammar.com/catalogue/ or scan your H20 with the Hammar MarCode App.

The weak link system has a breaking strength of 1,2 +- 0,4kN.

USCG approval no 160.062/14/10.

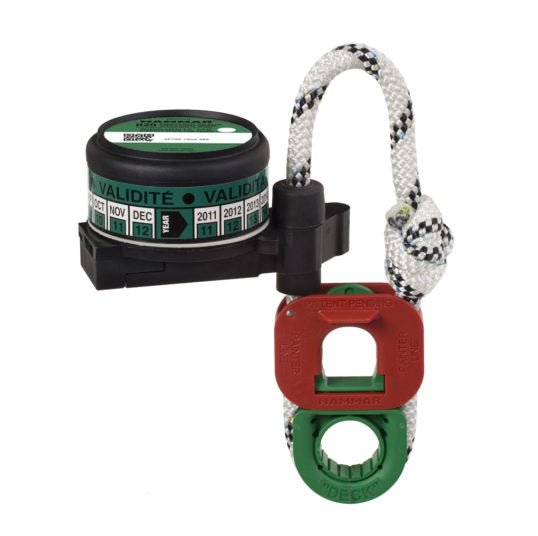

The Hammar H20 for small rafts consists of a double looped white rope line, a release mechanism and a Red Weak Link with a green lower thimble (breaking strength 1,2 +/- 0,4 kN).

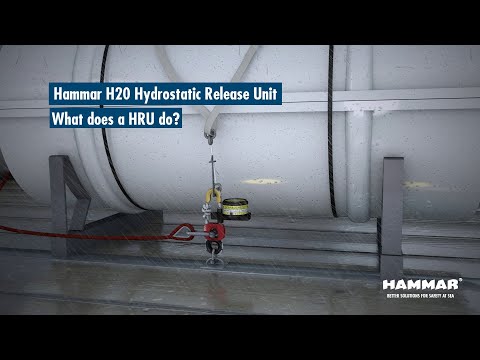

The white strong rope of Hammar H20 is secured to the deck or liferaft cradle and attached to the liferaft lashing with a slip hook. If the ship sinks, the water pressure will, within approximately 4 metres, activate a sharp knife, that cuts the white strong rope and the liferaft will float free. As the ship sinks, the liferaft painter line will be stretched and the liferaft starts to inflate. The Red Weak Link breaks and survivors can board the floating liferaft. The Hammar H20 needs no annual service, maintenance or spare parts, but must be replaced after 2 years of use on a ship.

• Release depth: 1.5-4.0 meters
• The weak link system has a breaking strength of 1,2 +- 0,4kN.
• Dispose after 2 years
• Weight 166 grams

Global Approval:

• USCG Section 6 Clarification USCG-EU MRA
• SOLAS 74/96 Convention, Reg. III/4 LSA Code, MO Res. MSC. 48/(66)
• IMO Res. MSC. 81(70)
• EU Directive 96/98 EC on Marine Equipment

Installation Instructions:
Under Documents Tab

• Number of pieces per package: 1
• Number of pieces per case: 30
• P/N: HA200H
