Lowrance  |  SKU: 32880

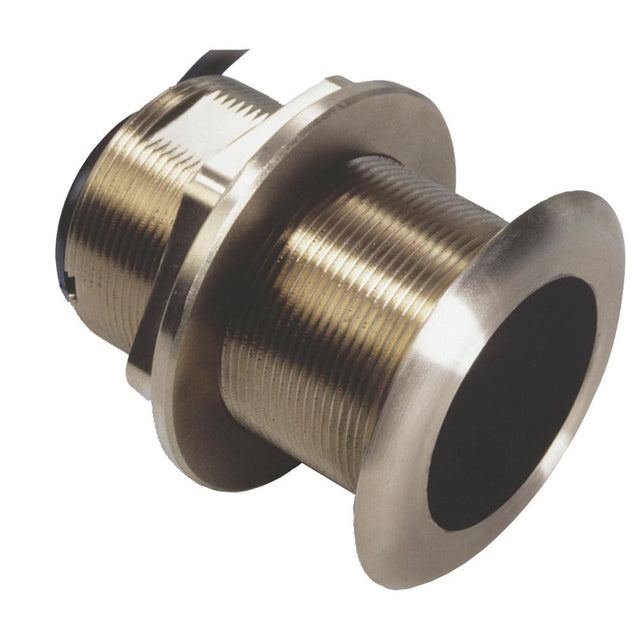

Lowrance B60-12, 12 Degree Tilted Element Transducer

$363.95 $390.00


Description

B60 Tilted Element™ 12°

12° tilted version is designed for 8° - 15° deadrise angles

The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

  • Depth/Temp
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
  • Bronze
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Pins: 7
  • Mounting Style: Thru-Hull
  • Imagining: Standard
  • Chirp: No
  • Cable Length (Feet): 30'
  • Box Dimensions: 4"H x 8"W x 10"L WT: 4.85 lbs

Owner's Manual (pdf)
Brochure (pdf)
