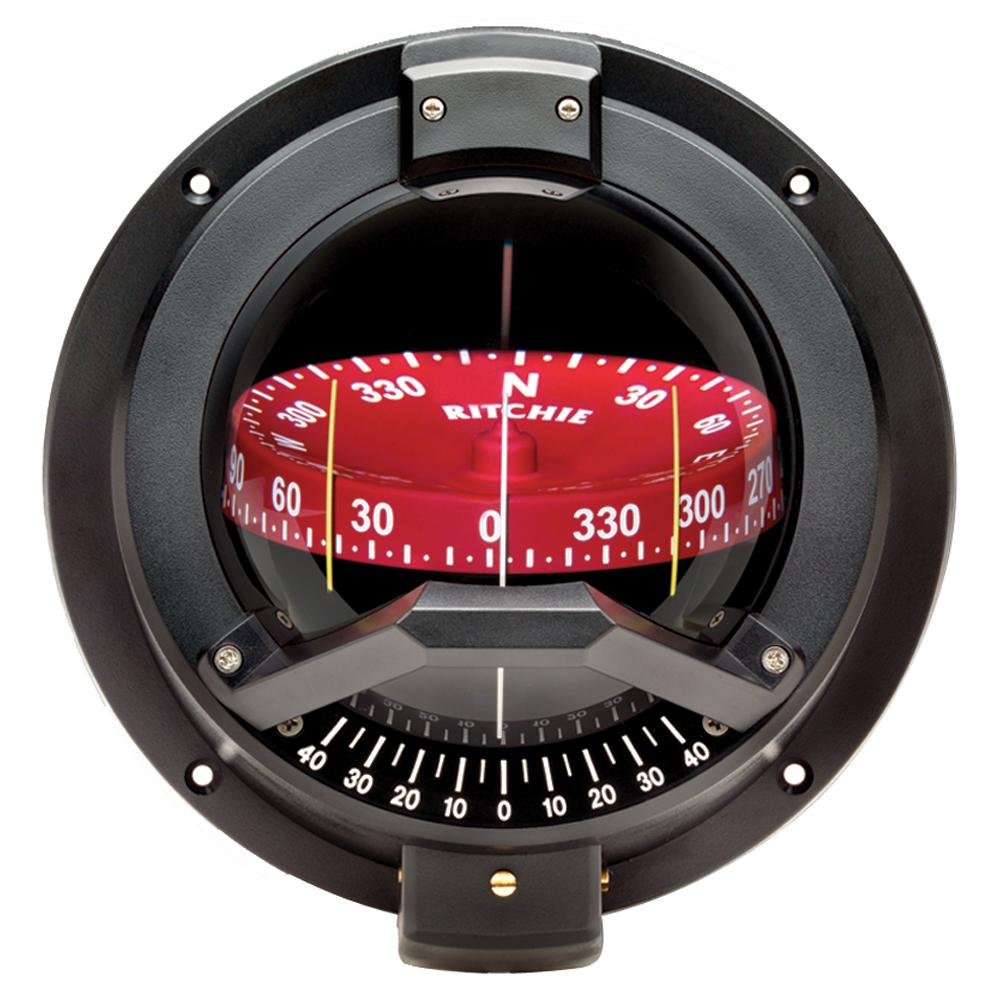

Ritchie BN-202 Navigator Compass - Bulkhead Mount - Black
Ritchie BN-202 Navigator Compass - Bulkhead Mount - Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- 4 1/2″ (115 mm) Ritchie CombiDial and Built-in Inclinometer
- When mounting this Compass to a bulkhead that is NOT perpendicular (90° angle) to the center-line of the boat and/or NOT vertical (90° angle) to the waterline of the boat (boat on level keel), a fairing block MUST be used to make the compass so.

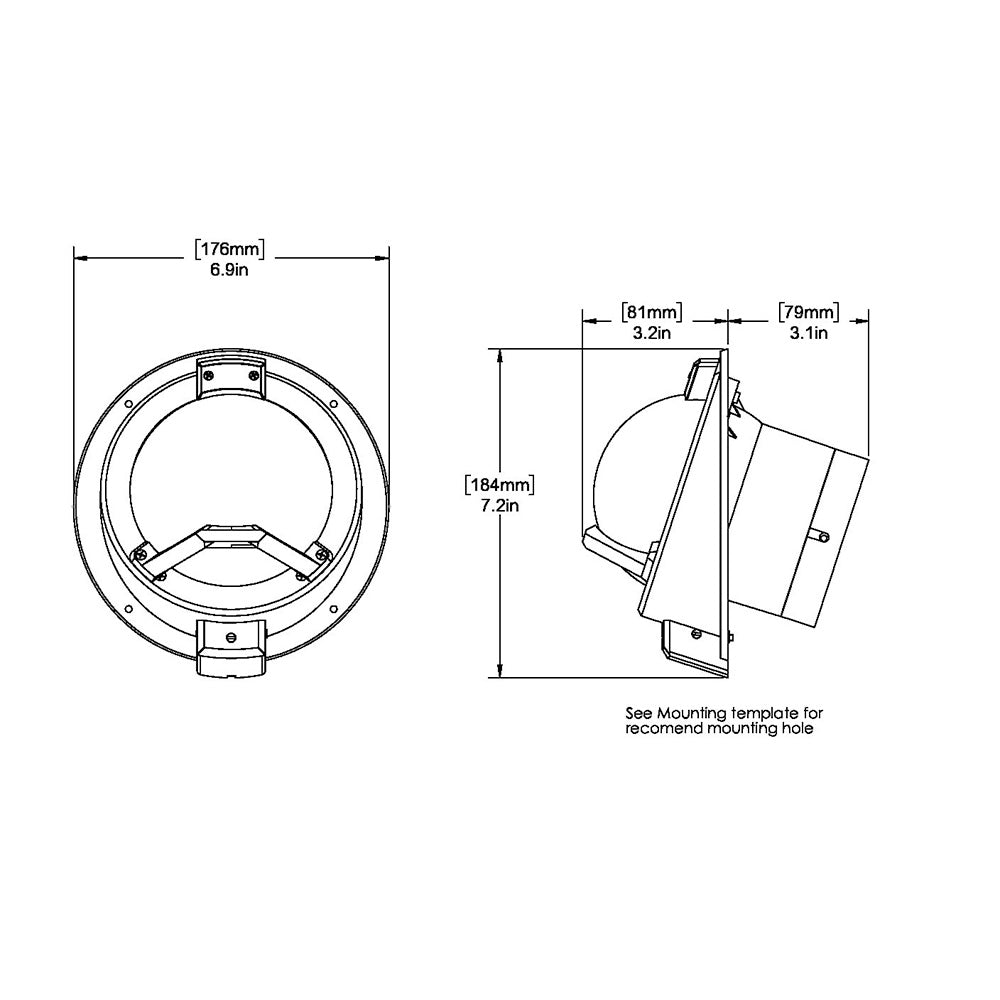

- Easily Installed, Fits 5.75″ (146 mm) Mounting Hole
- Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
- Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
- Fiberglass Reinforced Bowl
- 45 degree Lubber Lines
- Exclusive Built-in 12v Amber LED Lighting
- Built-in Compensators to Easily Adjust for Deviation
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 2 lbs 5 oz (1.05 kg)
12v lighting standard - 24 & 32v lighting options are available.
- Mounting Style: Bulkhead
- Lubber Lines: Yes
- Read: Both
- Backlight: Yes
- Box Dimensions: 7"H x 7"W x 8"L WT: 2.8 lbs
- UPC: 010342150301
Quick Guide (pdf)
Owner's Manual (pdf)
