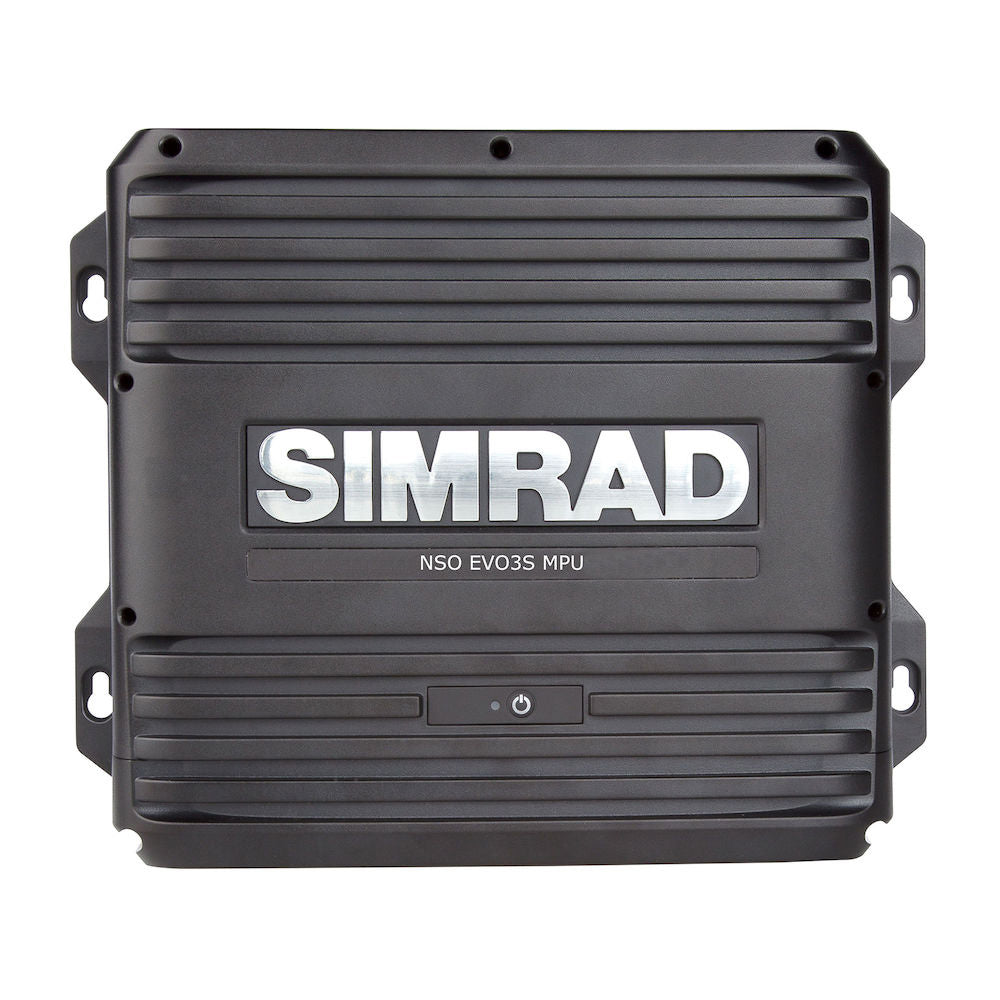

Simrad NSO evo3S MPU Processor
Simrad NSO evo3S MPU Processor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
NSO evo3S MPU Processor
Create truly customized multi-display systems with the NSO evo3S Processor – the ideal solution aboard powerboats 33' (10M) and larger. This marine processor can drive two independent displays, supporting both touchscreen and non-touch monitors. Expand and integrate to build your preferred system including navigation, radar, sonar, autopilot, and more.
Features:
- Build a tailored, multi-display system that is perfect for you and your boat with the modular NSO evo3S system. The NSO evo3S marine processor is a compact ‘black box’ solution containing two Quad-Core processors and the connectivity options needed to integrate and expand your system vessel-wide.
- Dual monitor support - enabling two independent stations
- Quad-Core processors for supreme performance. The NSO evo3S processor features two quad-core processors delivering category-leading response times across connected displays.
- Industry-standard vessel-wide connectivity. NSO evo3S systems offer vessel-wide integration, with Ethernet and industry-standard NMEA 2000® connectivity with an extensive selection of Simrad and third-party accessories.
Technical Specifications:
- Connectivity - NMEA 2000, NMEA 0183, ethernet, video inputs x 2, video output x 1, Wi-fi compatible with external module
- Languages - Standard Simrad language pack
- Supply Voltage - 9 - 31.2 V DC
- Waterproof rating - IPX2
- Dimensions (W x H x D) - 11" x 9.1" x 2.5" (281 x 232 x 66 mm)
- Weight - 2.33lb (1.06kg)
In the Box:
- Processor x 1
- Power cable - 6.5' (2 M) 4 pin to bare wire x 1
- Ethernet cable - 4" (.1 M) x 1
- NMEA 0183 cable - 6.5" (2 M) x 1
- NMEA 2000 cable - 6' (1.8 M) x 1
- NMEA 2000 power cable with T-Connector - x 1
- NMEA 200 terminal resistor kit x 1
- NMEA 2000 T-Connector x 2
- Instruction manual
*Sold as an Individual
Owner's Manual (pdf)
