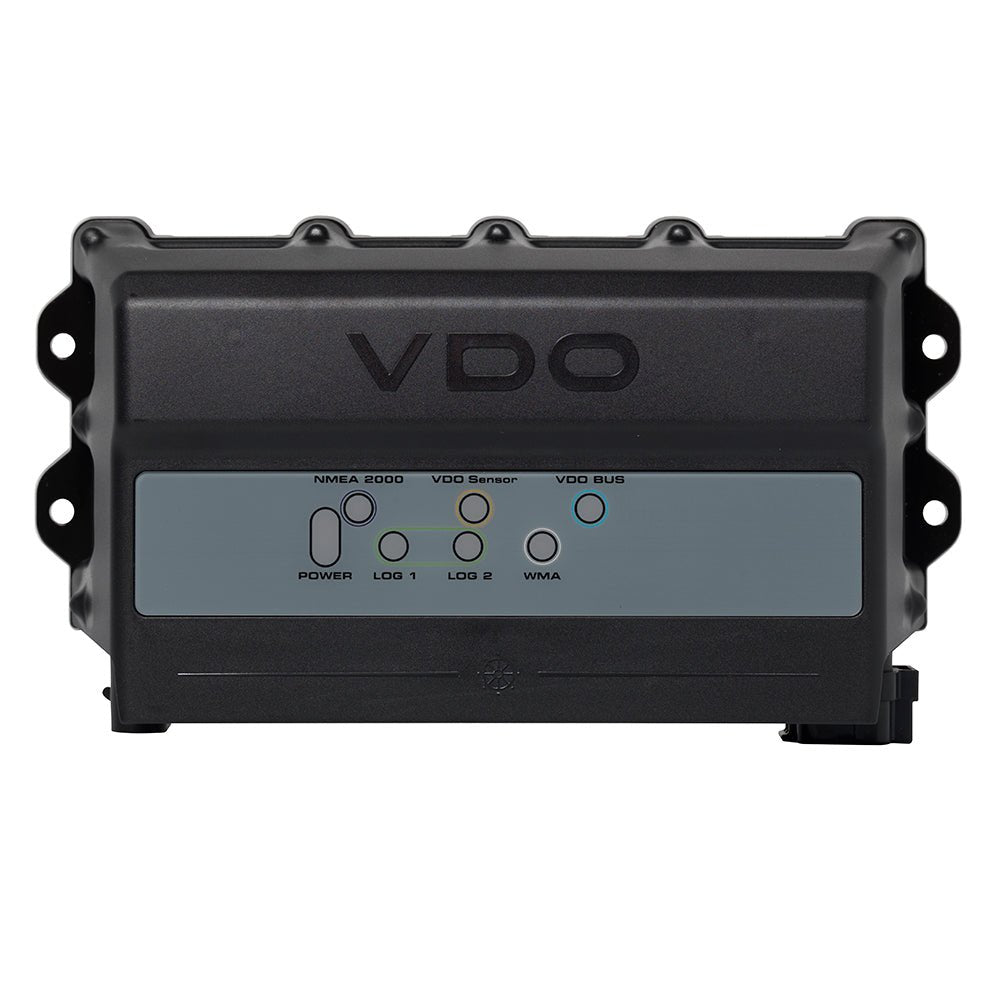

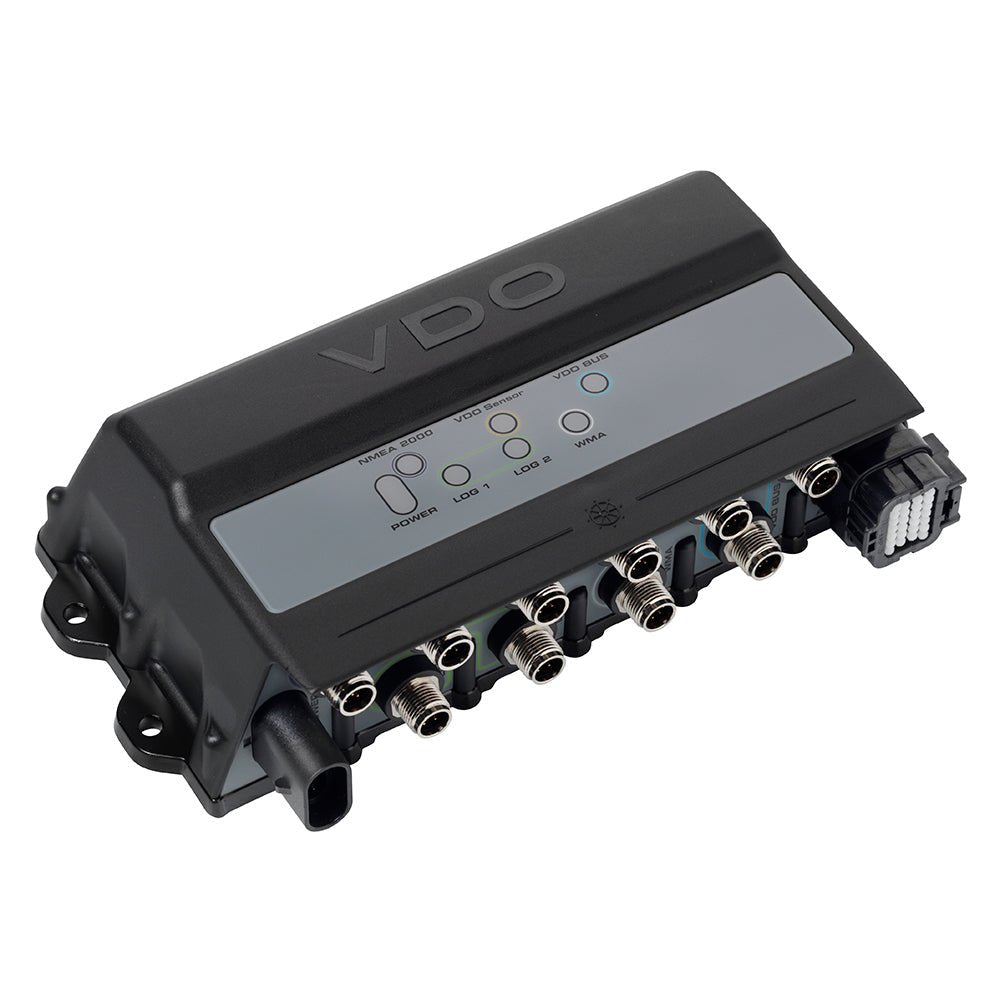

NavBox Electronic Control Unit
The AcquaLink® NavBox is the core of the AcquaLink® VDO Marine system. It acts as a CPU and signal interface. The NavBox provides a wide range of digital and analog input possibilities. It supports up to four electronic engines (J1939 or NMEA 2000®) or one analog engine. It also features two VDO Marine Sumlog® paddle wheel sensor and one analog VDO Marine Windsensor connections, so legacy VDO Marine products can be used and brought to the digital age.
NavSensor reads following analog data:
It also features a NMEA 0183 input and output port as well as a buzzer output. All received data are converted and sent to the NMEA 2000® network and to the VDO Marine Bus. This gateway function allows displaying engine, liquid level, pressure, temperature and other vital information on any compatible display on the NMEA 2000® network or on designed VDO Marine AcquaLink® gauges or TFT Displays.
The configuration of the NavBox can be done by using an AcquaLink® TFT and NavControl or by using the intuitive VDO Marine diagnostic tool.
