Wichard Marine  |  SKU: 97732

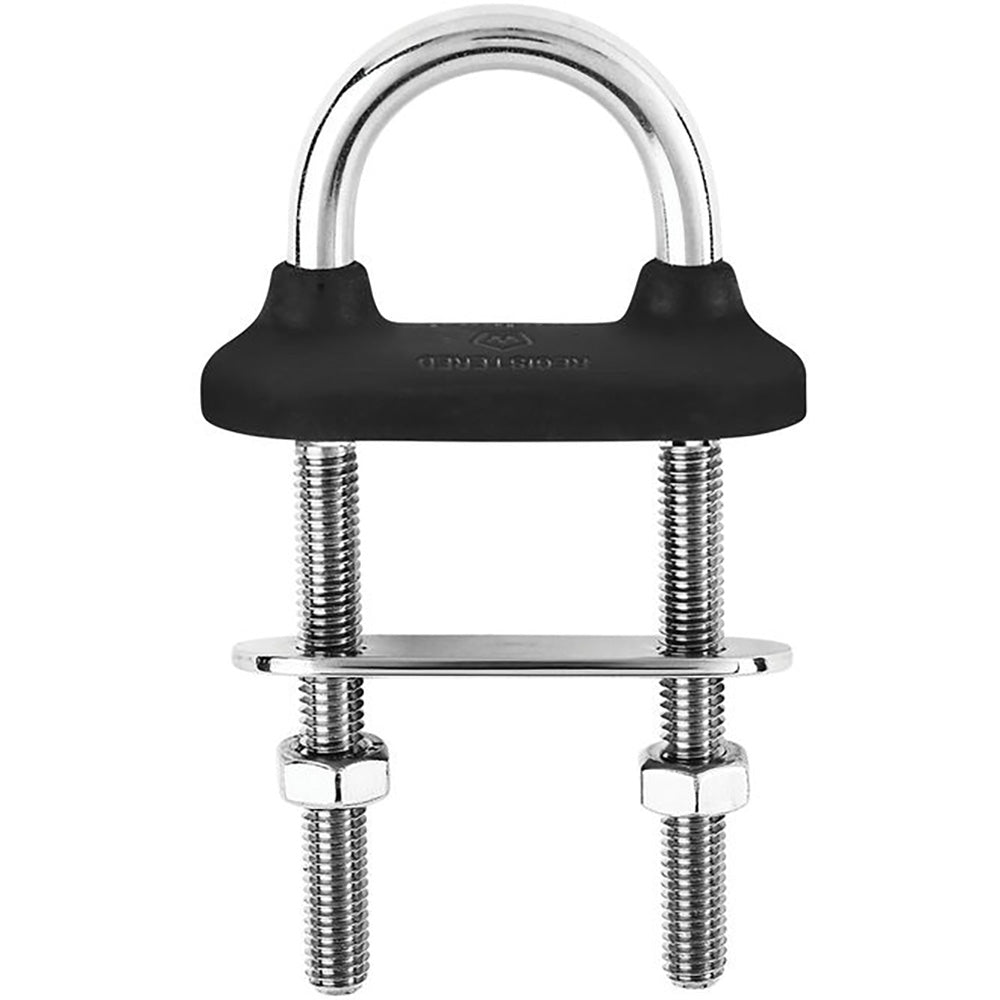

Wichard Black Watertight U-Bolt - 6mm Diameter - 15/64" - 70mm Length - 2-3/4"

$18.95 $27.67
Shipping calculated at checkout.


Description

Black Watertight U-Bolt - 6mm Diameter - 15/64" - 70mm Length - 2-3/4"

Features:

  • Fully drop-forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • Complete water-tightness thanks to the resistant rubber collar (black color)
  • Easy installation (no need to use a waterproof sealant)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 7.5 nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Color: Black
  • Working load: (lb) 2820 / (kg) 1280
  • Breaking load: (lb) 6610 / (kg) 3000
  • Weight: (lb) 0.132 / (g) 60

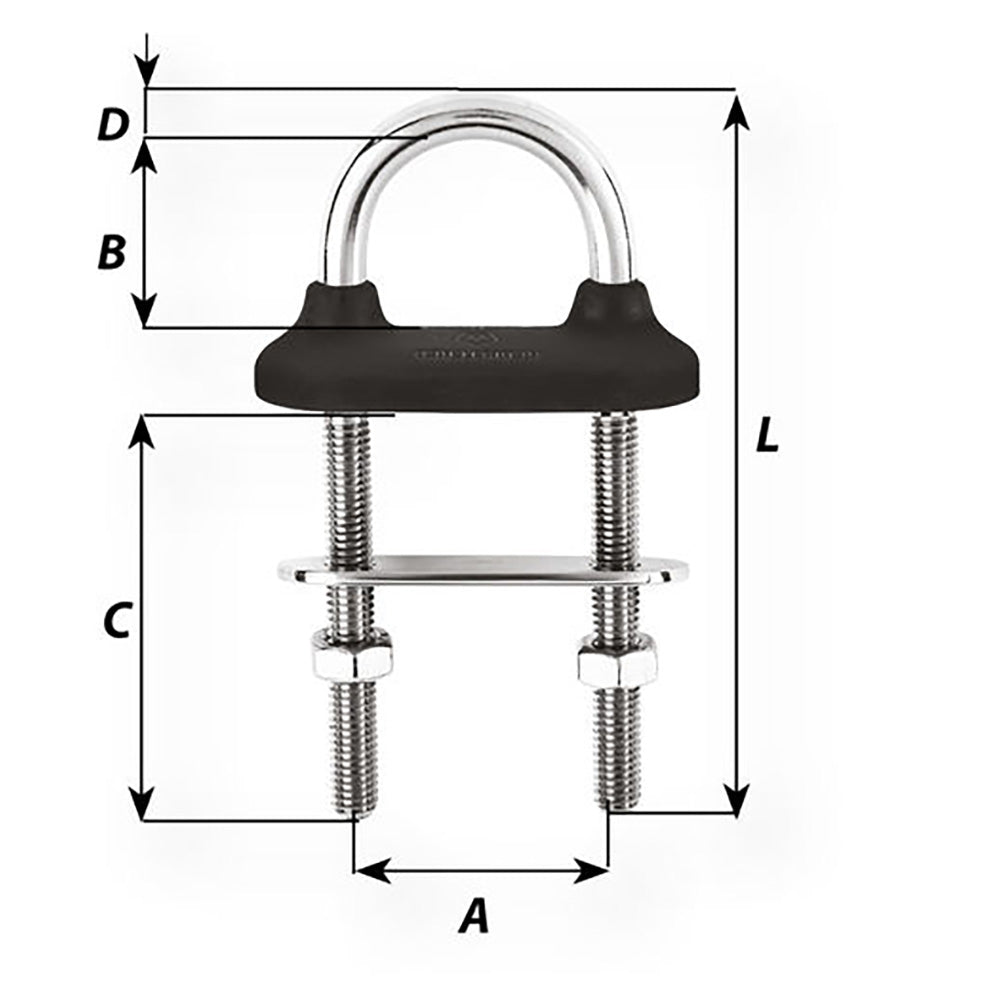

Dimensions:

  • Length: (inch) 2 3/4" / (mm) 70
  • A: (inch) 1 17/64" / (mm) 32
  • B: (inch) 15/16" / (mm) 24
  • C: (inch) 1 3/8" / (mm) 35
  • D diameter: (inch) 15/64" / (mm) 6

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
