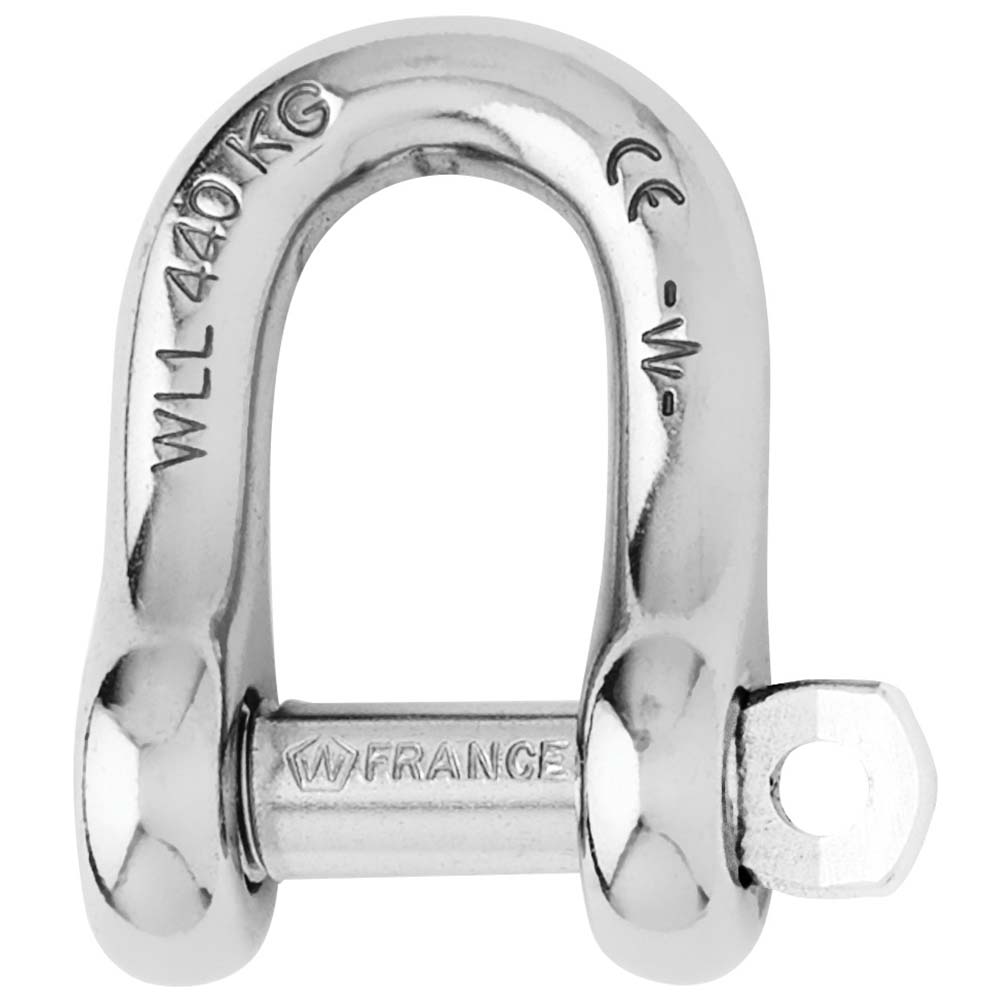

Captive Pin D Shackle - Diameter 8mm - 5/16"
- Captive pin "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Standard applications of shackle
- Attachment applications: blocks, head...
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1580
- Breaking load (lb) 7930
- Weight (lb) 0.134

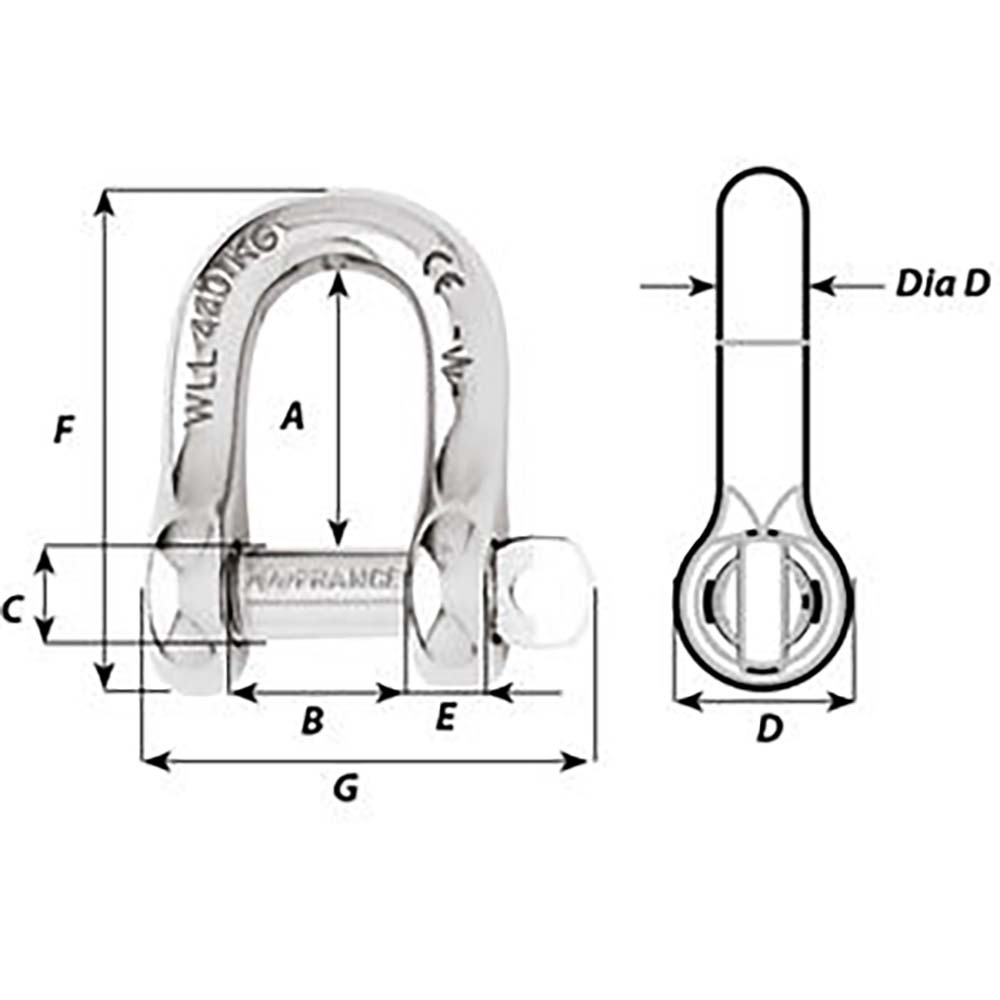

Dimensions (see 2nd image):
- A (inch) 1-1/32"
- B (inch) 5/8"
- C (inch) 23/64"
- D (inch) 45/64"
- D diameter (inch) 5/16"
- E (inch) 5/16"
- F (inch) 1-27/32"
- G (inch) 1-21/32"
