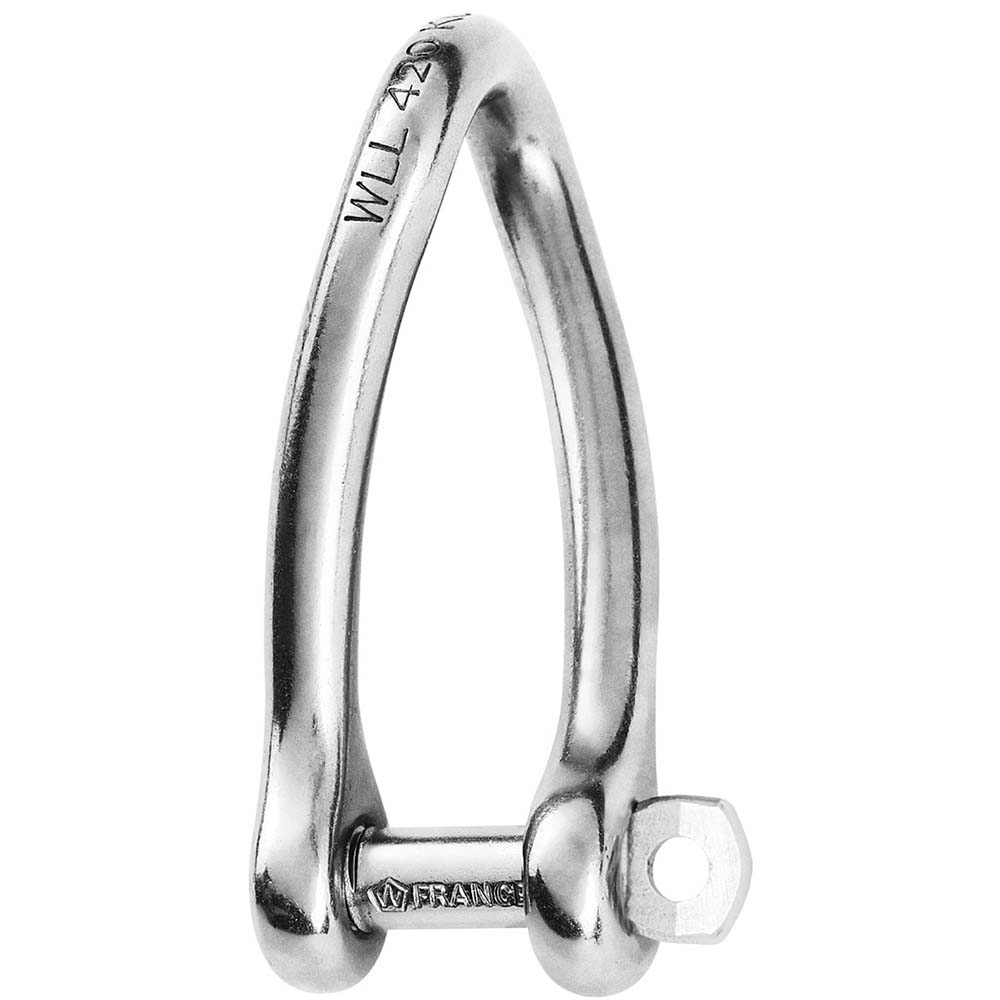

Captive Pin Twisted Shackle - Diameter 5mm - 3/16"
- Captive pin twisted shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Single-handed operation for more safety
- Part # 1422 is not suitable for lifting applications
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
- Materials 316 stainless steel grade
- Working load (lb) 1050
- Breaking load (lb) 3300
- Weight (lb) 0.051

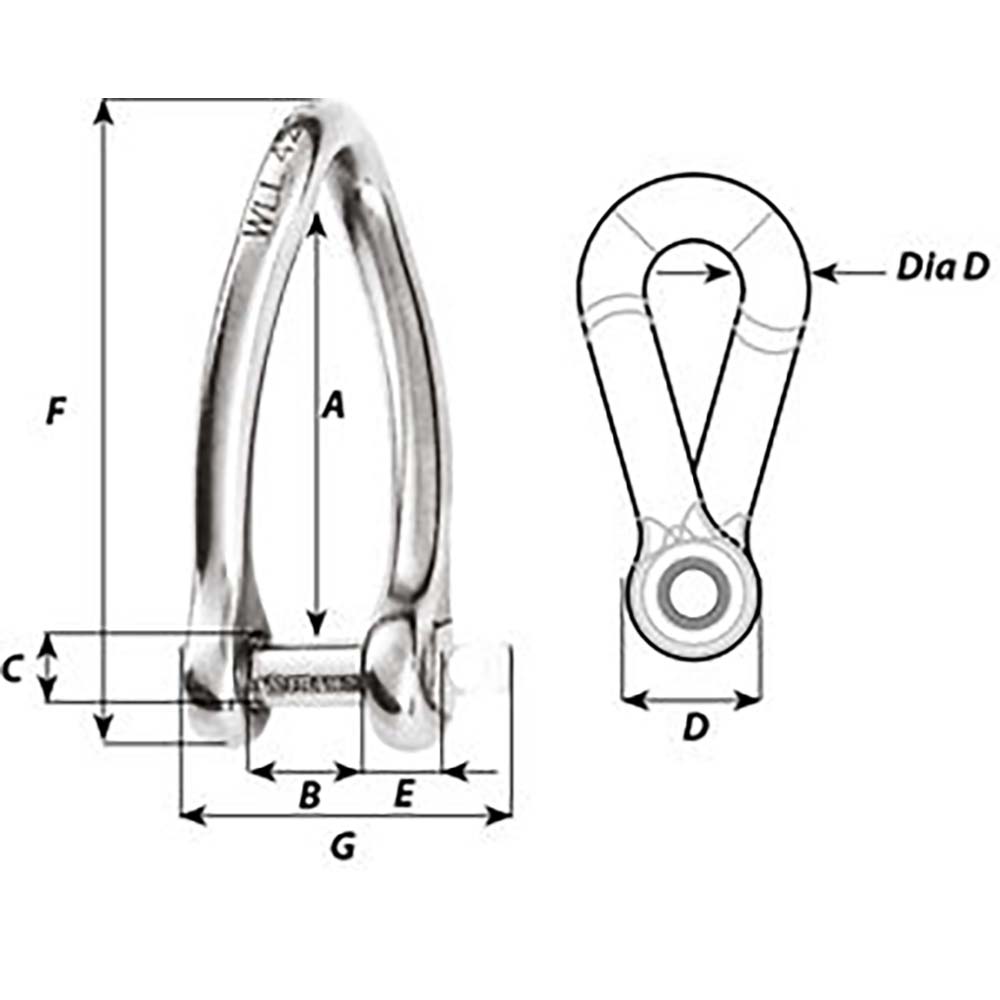

Dimensions (see 2nd image):
- A (inch) 1-29/64"
- B (inch) 25/64"
- C (inch) 15/64"
- D (inch) 7/16"
- D diameter (inch) 13/64"
- E (inch) 13/64"
- F (inch) 1-31/32"
- G (inch) 1-1/16"
