Wichard Captive Pin Twisted Shackle - Diameter 6mm - 1/4"
Wichard Captive Pin Twisted Shackle - Diameter 6mm - 1/4" is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

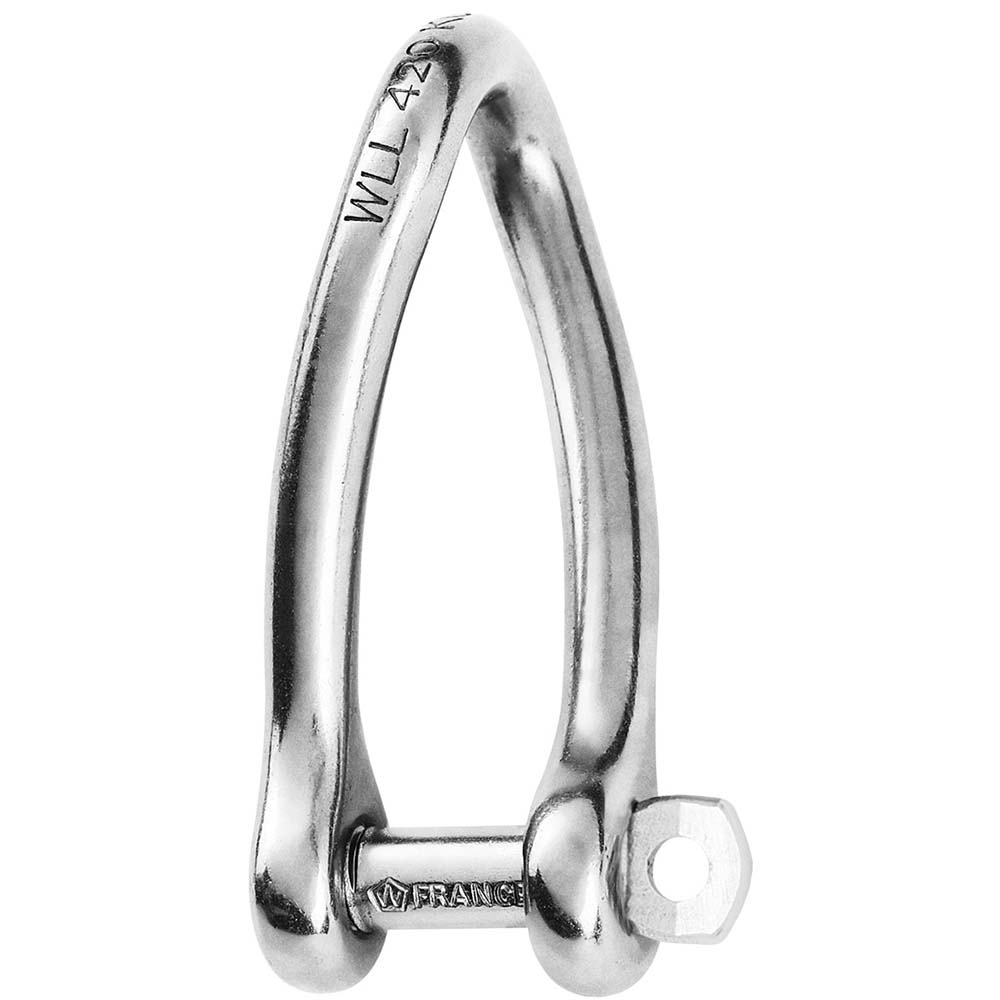

Captive Pin Twisted Shackle - Diameter 6mm - 1/4"
- Captive pin twisted shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Single-handed operation for more safety
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
- Materials 316 stainless steel grade
- Working load (lb) 1320
- Breaking load (lb) 4620
- Weight (lb) 0.086

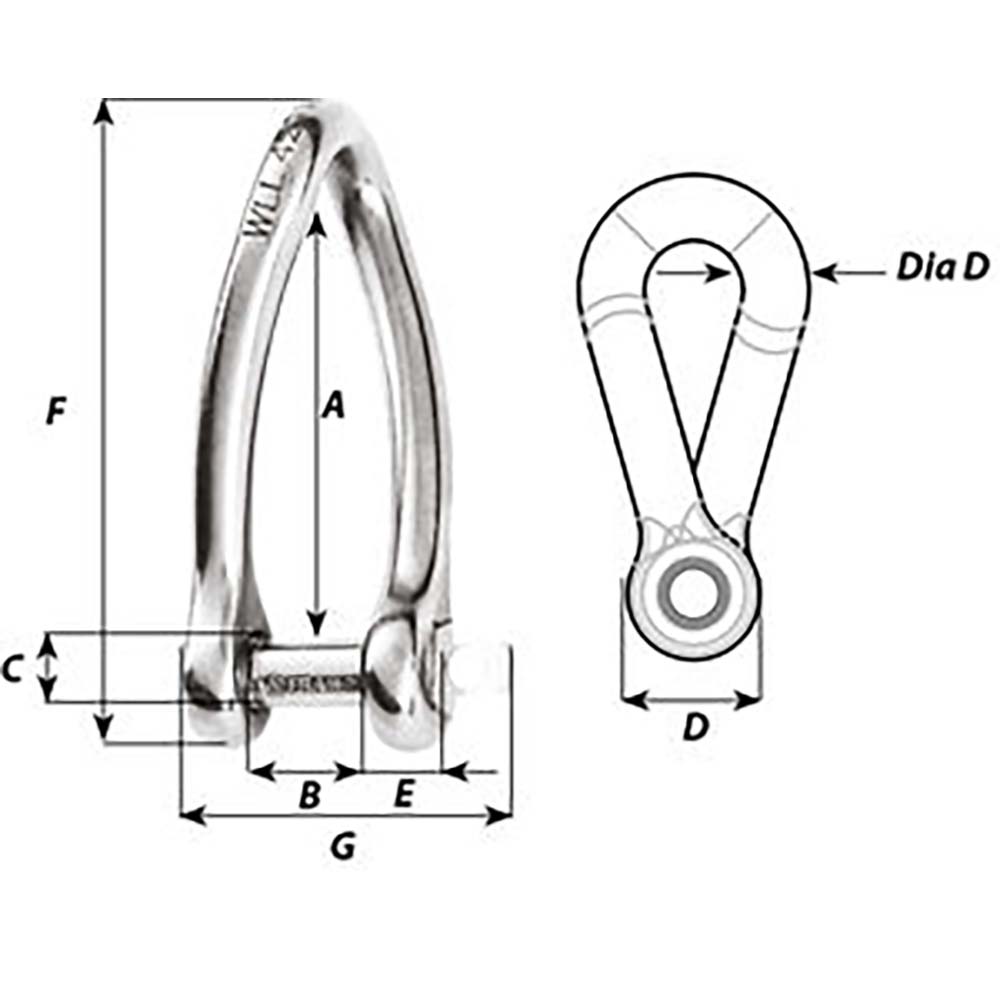

Dimensions (see 2nd image):
- A (inch) 1-47/64"
- B (inch) 15/32"
- C (inch) 9/32"
- D (inch) 35/64"
- D diameter (inch) 15/64"
- E (inch) 15/64"
- F (inch) 2-23/64"
- G (inch) 1-7/32"
