Wichard Marine  |  SKU: 99755

Wichard FRX20 Friction Ring - 20mm (25/32")

$21.95 $31.16
Shipping calculated at checkout.


Description

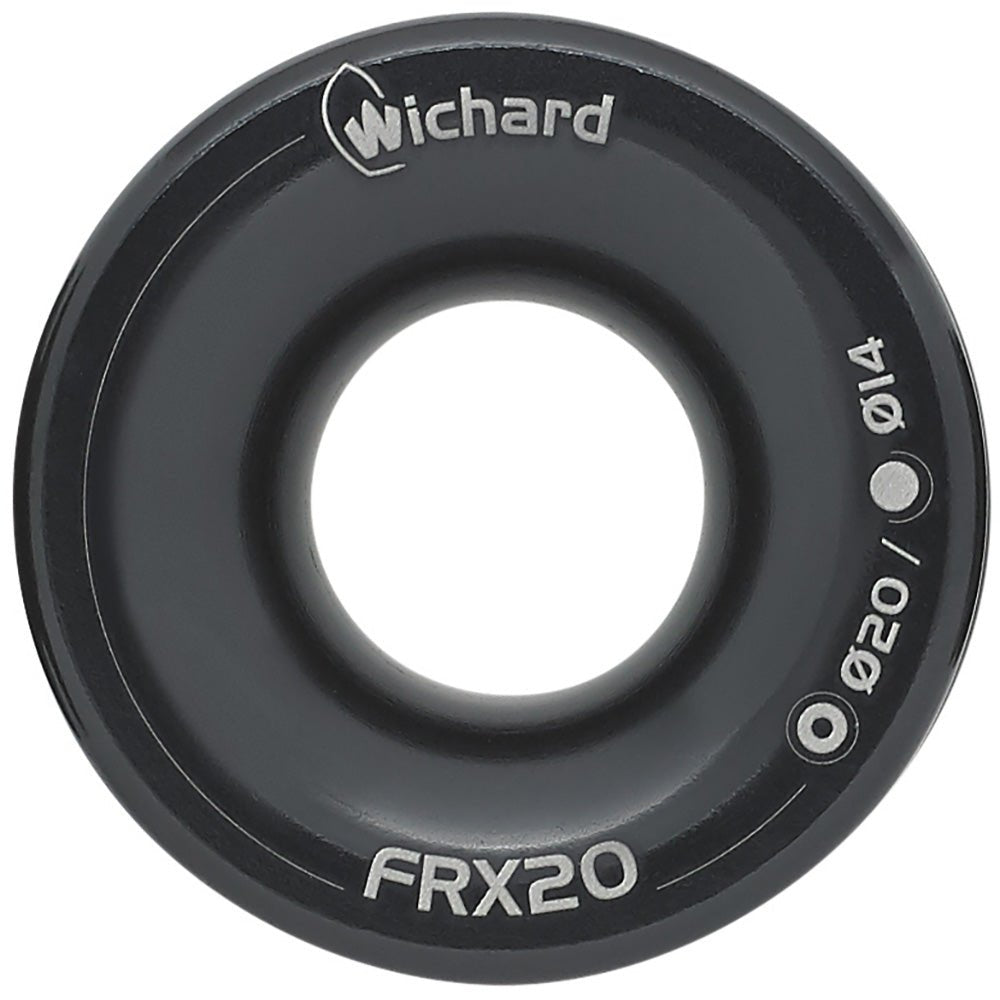

FRX20 Friction Ring - 20mm (25/32")

Features:

  • Efficient and light
  • FRX Wichard thimbles are efficient, light, and reliable
  • Very strong and can be used for heavy loads and semi-static lines
  • FRX thimbles are designed to make your lines run smoothly with minimum wear
  • They are hard anodized (50 microns) for a longer lifespan

Applications:

  • Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more

Specifications:

  • Materials: Anodized aluminium
  • Working load: (lb) 7050 / (kg) 3200
  • Weight: (lb) 0.068 / (g) 31

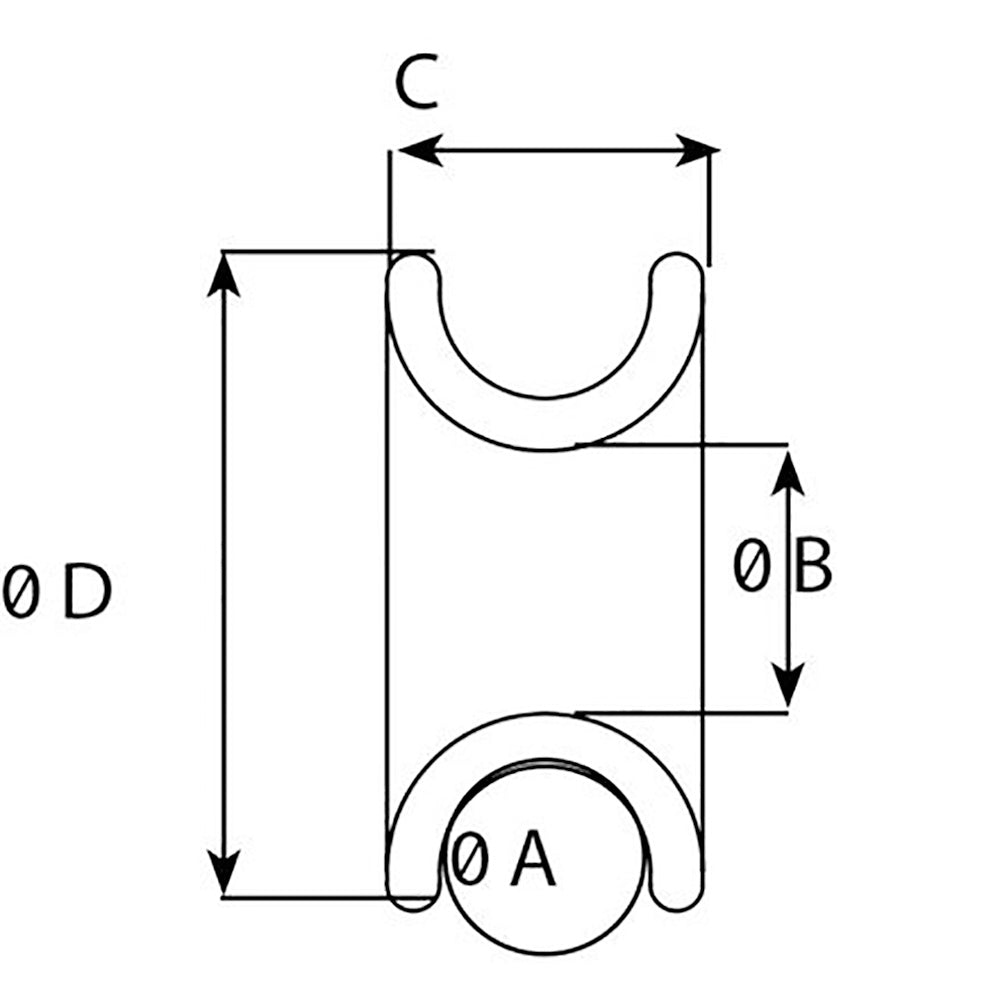

  • A: (inch) 35/64" / (mm) 14
  • B: (inch) 25/32" / (mm) 20
  • C: (inch) 53/64" / (mm) 21
  • D diameter: (inch) 1 27/32" / (mm) 47

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

Quick Guide (pdf)
