Wichard HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The...
Vendor: Wichard Marine
SKU: 97663
Availability: Out Of Stock
Product Type: Shackles/Rings/Pins
$116.14
$136.63
$116.14
Please hurry! Only 0 left in stock
Subtotal: $116.14
10 customers are viewing this product

Free Shipping

Free shipping on all orders over $250.00. EXCLUDING HAZMAT PRODUCTS.

Wichard HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32" - Life Raft Professionals

Wichard HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

$136.63 $116.14

Wichard HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

$136.63 $116.14

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 1940 / (kg) 880
  • Breaking load: (lb) 2860 / (kg) 1300
  • Weight: (lb) 0.119 / (g) 54

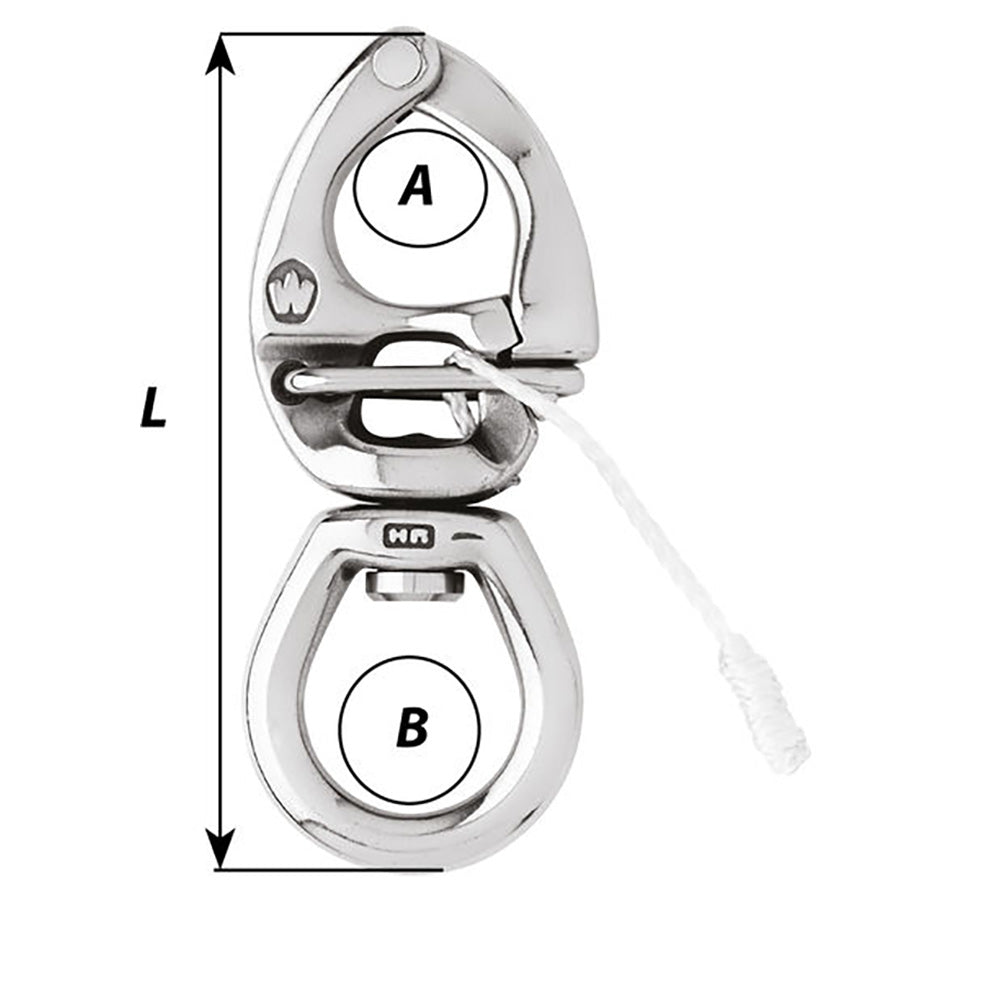

Dimensions:

  • A: (inch) 35/64" / (mm) 14
  • B: (inch) 3/4" / (mm) 19
  • Length: (inch) 3 5/32" / (mm) 80

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
