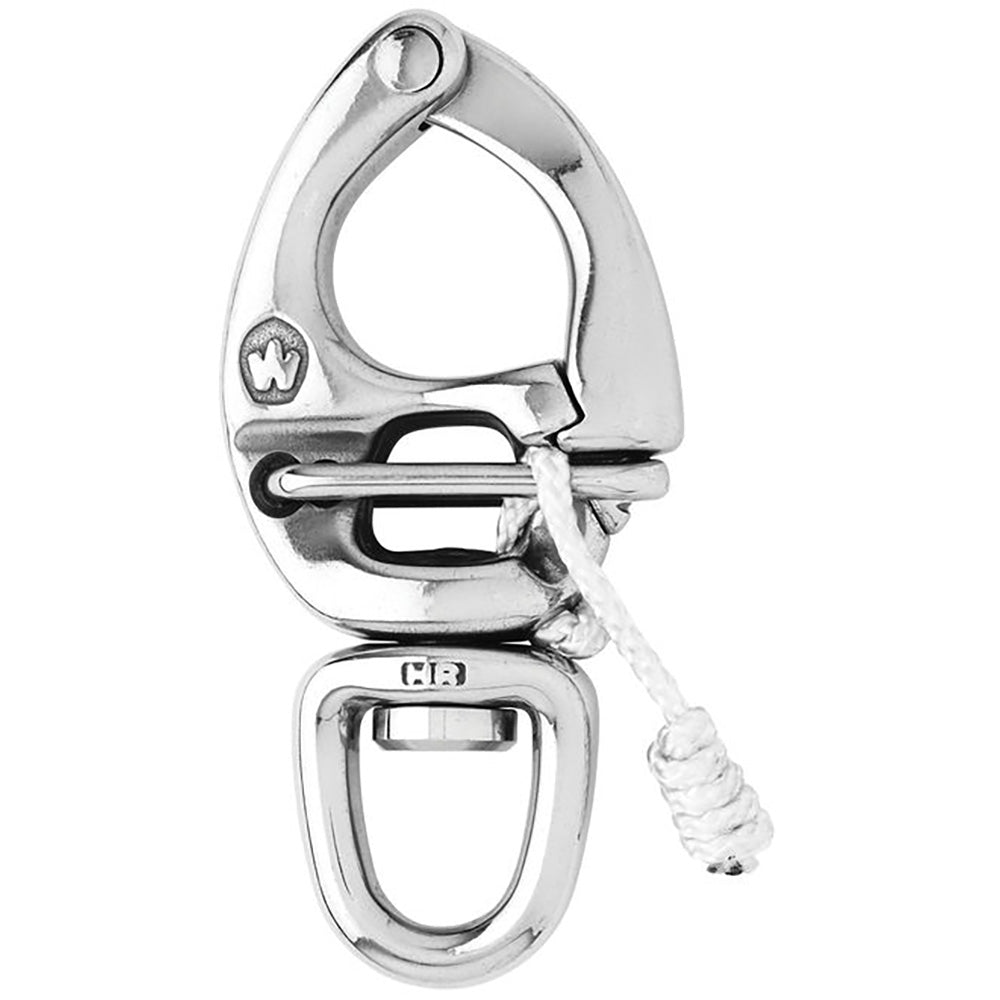

Wichard HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"

HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"Features: HR forged (17.4 PH) quick-release snap shackle with swivel eye The...
Vendor: Wichard Marine
SKU: 97658
Availability: Out Of Stock
Product Type: Shackles/Rings/Pins
$131.91
$155.18
$131.91
Please hurry! Only 0 left in stock
Subtotal: $131.91
10 customers are viewing this product

Free Shipping

Free shipping on all orders over $250.00. EXCLUDING HAZMAT PRODUCTS.

Wichard HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32" - Life Raft Professionals

Wichard HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"

$155.18 $131.91

Wichard HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"

$155.18 $131.91

HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with swivel eye
  • The opening is made by pulling the lanyard
  • Perfect to attach one sheet or halyard
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect for spinnaker sheets and halyards

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • Breaking load: (lb) 5070 / (kg) 2300
  • Weight: (lb) 0.194 / (g) 88

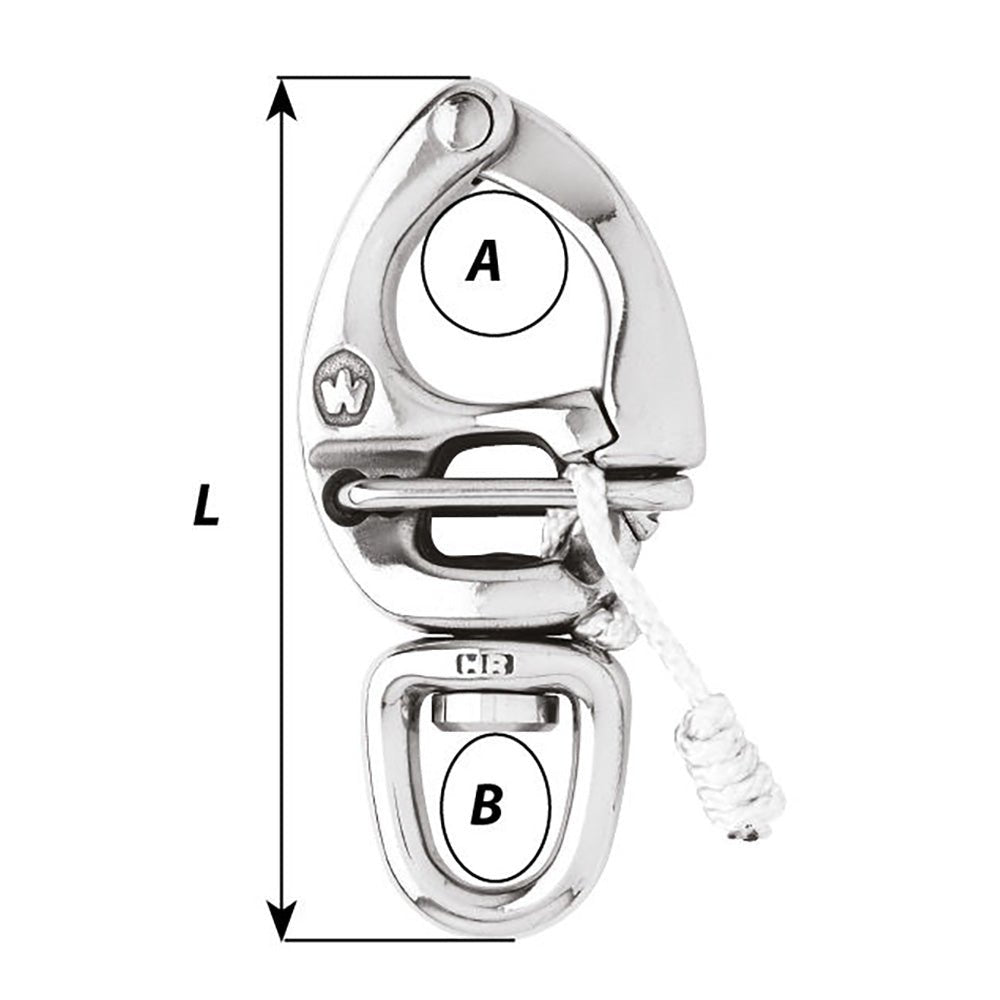

Dimensions:

  • A: (inch) 5/8" / (mm) 16
  • B: (inch) 15/32" / (mm) 12
  • Length: (inch) 3 5/32" / (mm) 80

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual
