Wichard Marine  |  SKU: 99747

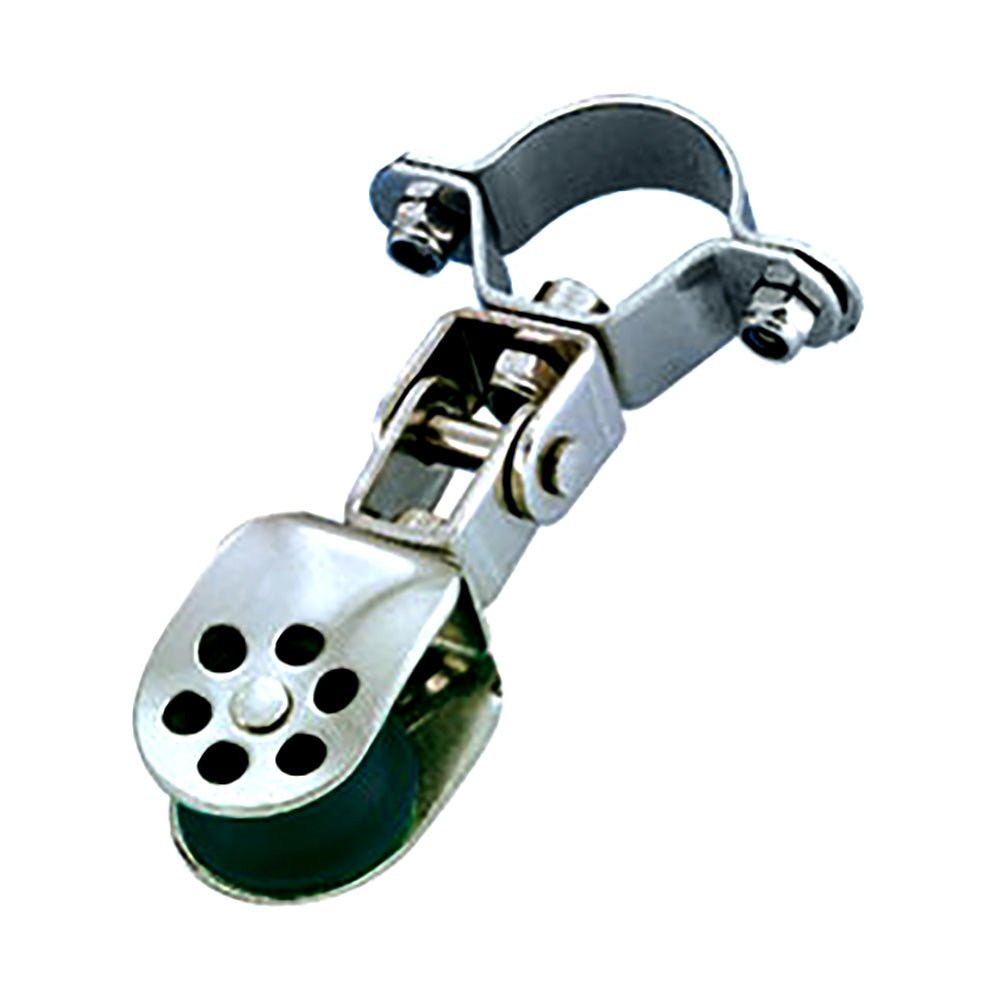

Wichard Stainless Steel Single Block - 25mm Sheave Diameter f/25mm Stanchion Pivoting

$41.95 $61.69
Shipping calculated at checkout.


Description

Stainless Steel Single Block - 25mm Sheave Diameter for 25mm Stanchion Pivoting

  • A single block intended for use on a dinghy. The block is light, reliable, and has good performance.

Applications:

  • For stanchion applications - furling system line

Specifications:

  • Materials Composite sheave and 316L stainless steel grade cheeks
  • Rope size: (inch) 5/16"-25/64" / (mm) 8-10
  • Length: (inch) 3 47/64" / (mm) 95
  • Width: (inch) 2 3/32" / (mm) 53
  • Thickness: (inch) 53/64" / (mm) 21
  • Sheave Diameter: (inch) 63/64" / (mm) 25
  • Working load: (lb) 610 / (mm) 280
  • Breaking load: (lb) 880 / (mm) 400
  • Weight: (lb) 0.154 / (g) 70

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
