Wichard Marine  |  SKU: 97684

Wichard U-Bolt Pad Eye - 4mm Diameter - 5/32"

$11.95 $16.80
Shipping calculated at checkout.


Description

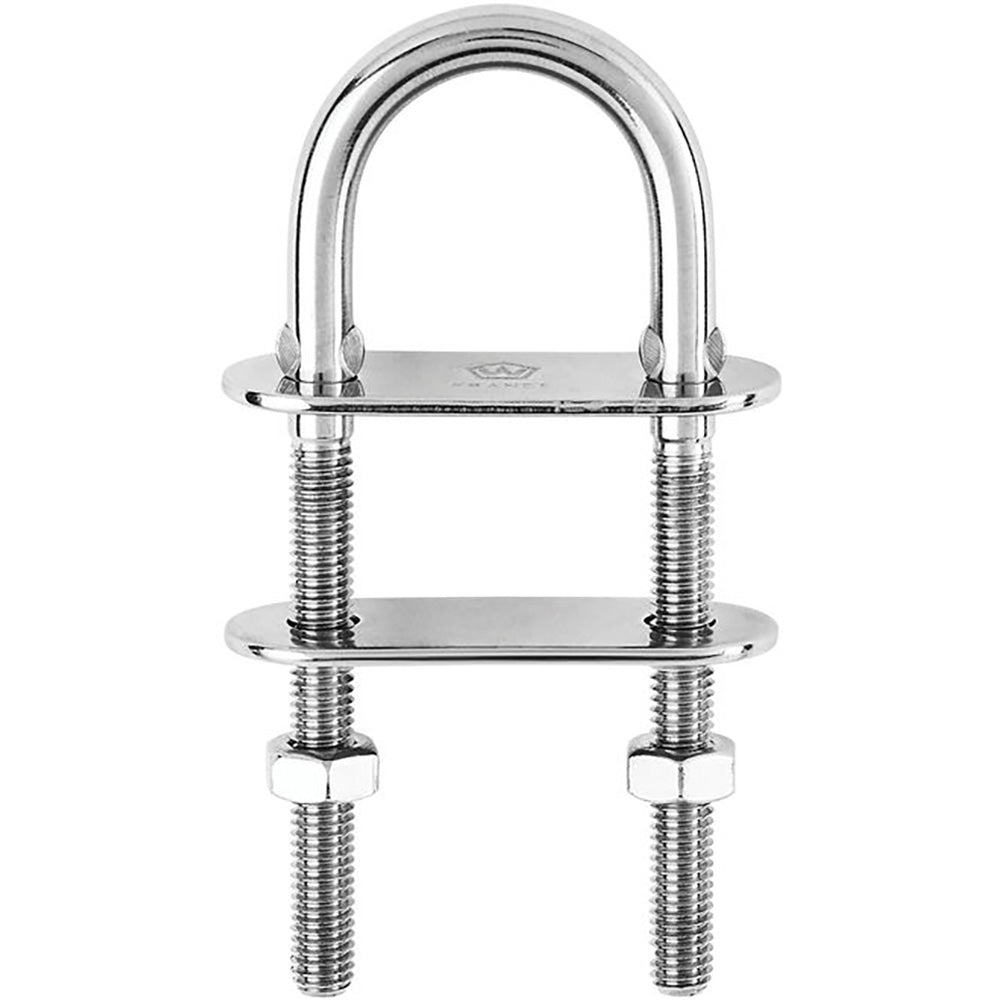

U-Bolt Pad Eye - 4mm Diameter - 5/32"

Features:

  • Fully drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any kind of fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 2.3 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 1050 / (kg) 480
  • Breaking load: (lb) 2200 / (kg) 1000
  • Weight: (lb) 0.049 / (g) 22

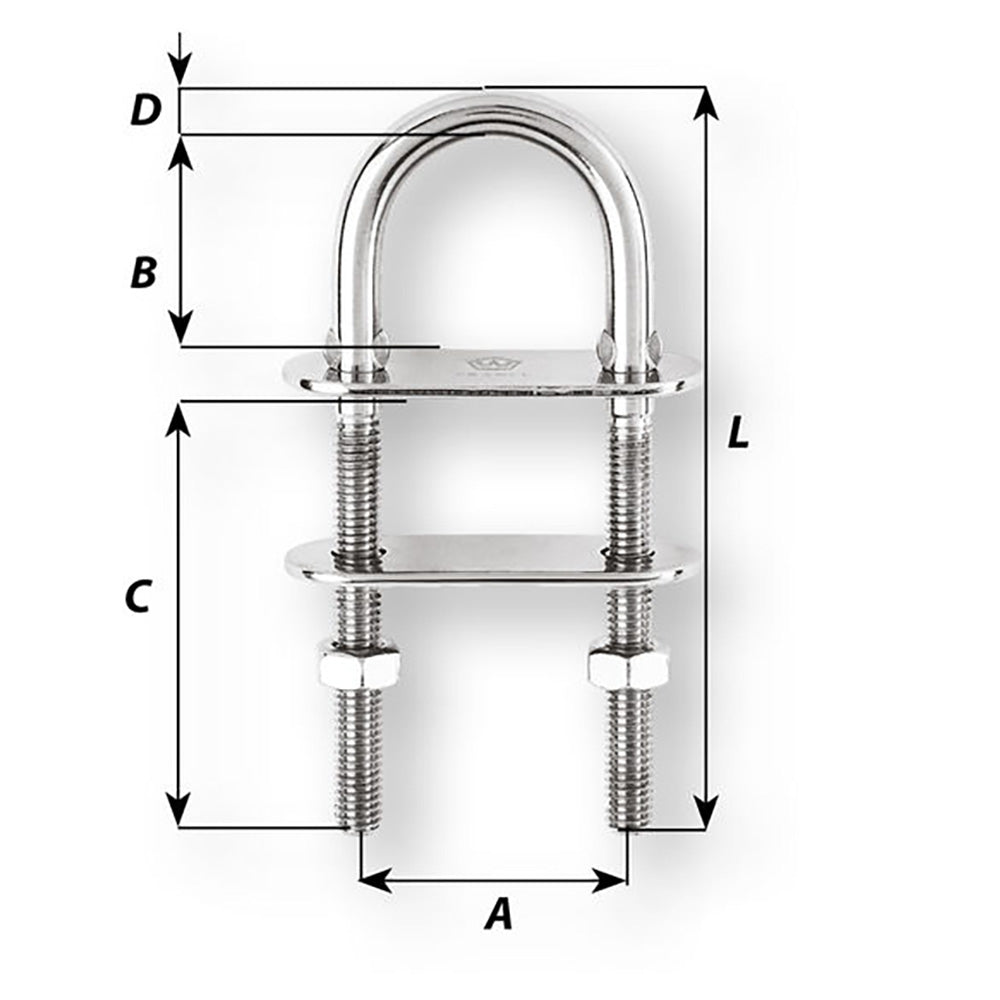

Dimensions:

  • A: (inch) 15/16" / (mm) 24
  • B: (inch) 53/64" / (mm) 21
  • C: (inch) 1 1/16" / (mm) 27
  • D diameter: (inch) 5/32" / (mm) 4
  • Length: (inch) 1 31/32" / (mm) 50

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
